Rear Window Washer Pump Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

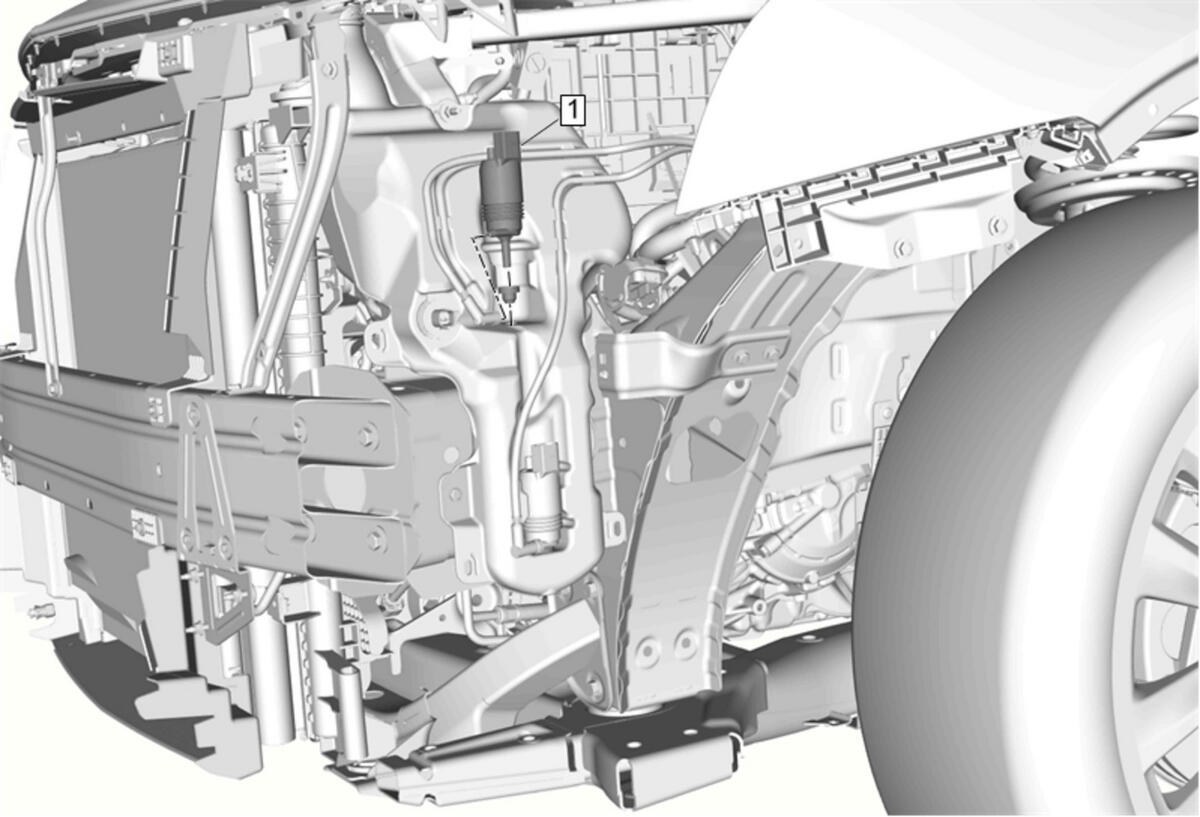

Fig 1: Rear Window Washer Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Headlamp Replacement - Left Side Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the rear window washer pump hose is disconnected.
1	Rear Window Washer Pump Procedure Disconnect the electrical connector. Disconnect the rear window washer pump hose. Using the appropriate tools, place under each side of the washer pump, twist and lift in opposite directions to disengage the washer pump from the windshield washer solvent container and grommet.

Callout

Component Name

Preliminary Procedures

Headlamp Replacement - Left Side
Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the rear window washer pump hose is disconnected.

Rear Window Washer Pump

Procedure

Disconnect the electrical connector.
Disconnect the rear window washer pump hose.
Using the appropriate tools, place under each side of the washer pump, twist and lift in opposite directions to disengage the washer pump from the windshield washer solvent container and grommet.
