Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

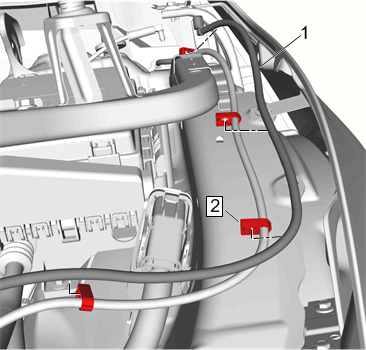

Fig 1: Rear Window Washer Pump Hose And Rear Window Washer Nozzle Hose

Courtesy of GENERAL MOTORS COMPANY

Install Rear Window Washer Pump Hose (1) @Rear Window Washer Nozzle Hose (2)

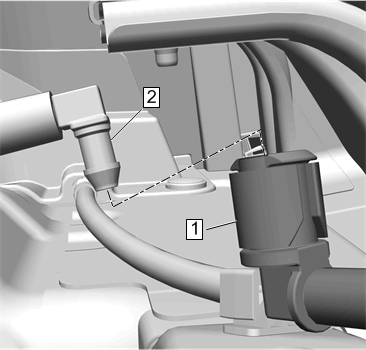

Fig 2: Rear Window Washer Pump And Hose

Courtesy of GENERAL MOTORS COMPANY

Install Rear Window Washer Pump Hose (1) @Rear Window Washer Pump Hose Clip (2)

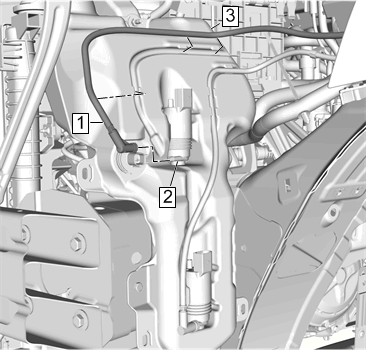

Fig 3: Rear Window Washer Pump, Hose And Windshield Washer Solvent Container

Courtesy of GENERAL MOTORS COMPANY

Install Rear Window Washer Pump Hose (1) @Rear Window Washer Pump (2)
Install Rear Window Washer Pump Hose (1) @Windshield Washer Solvent Container (3)
