Rear Window Washer Nozzle Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

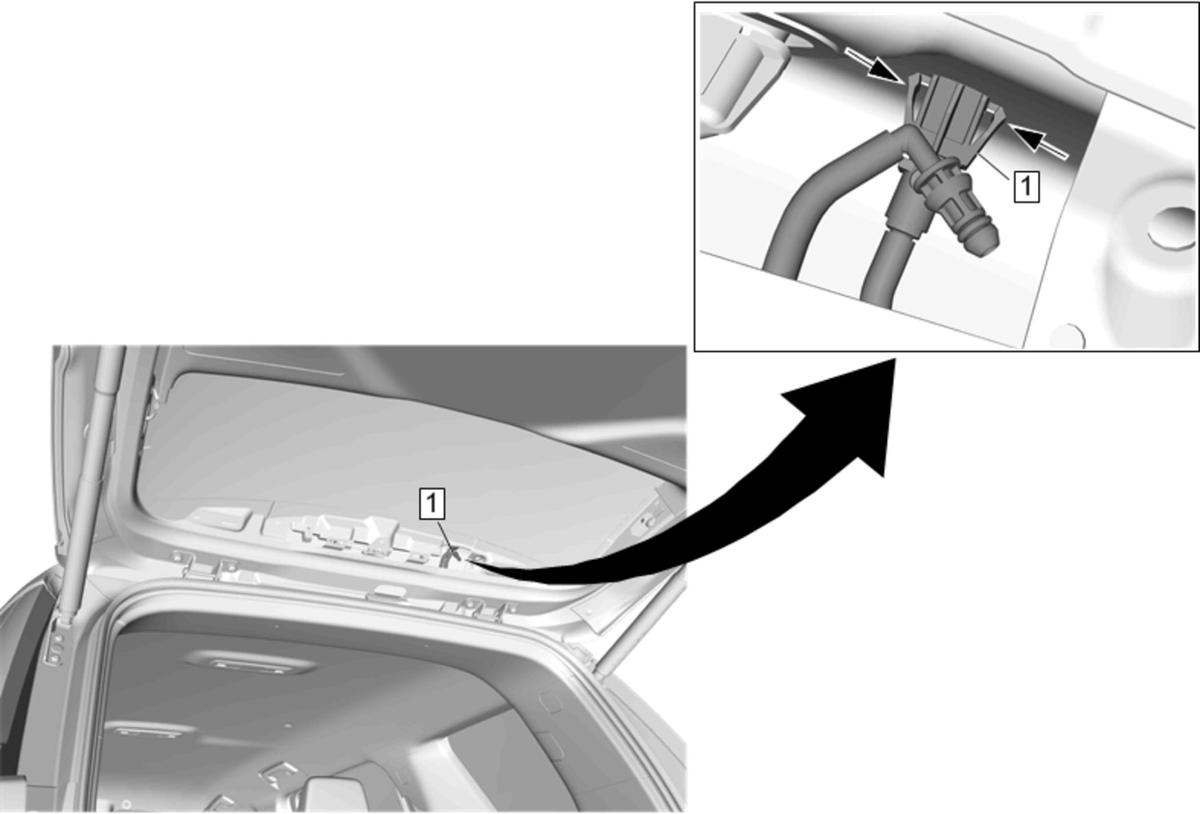

Fig 1: Rear Window Washer Nozzle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Liftgate Upper Trim Finish Panel Replacement
1	Rear Window Washer Nozzle Procedure Disconnect the windshield washer liftgate extension rear hose from the rear window washer nozzle. Depress the tabs on the rear window washer nozzle to remove.

Callout

Component Name

Preliminary Procedure
Liftgate Upper Trim Finish Panel Replacement

Rear Window Washer Nozzle

Procedure

Disconnect the windshield washer liftgate extension rear hose from the rear window washer nozzle.
Depress the tabs on the rear window washer nozzle to remove.
