Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U)

Fig 1: Rear Window Washer Nozzle Hose

Courtesy of GENERAL MOTORS COMPANY

Cut off the ends of the rear window washer nozzle hose (1) at the wiring harness.

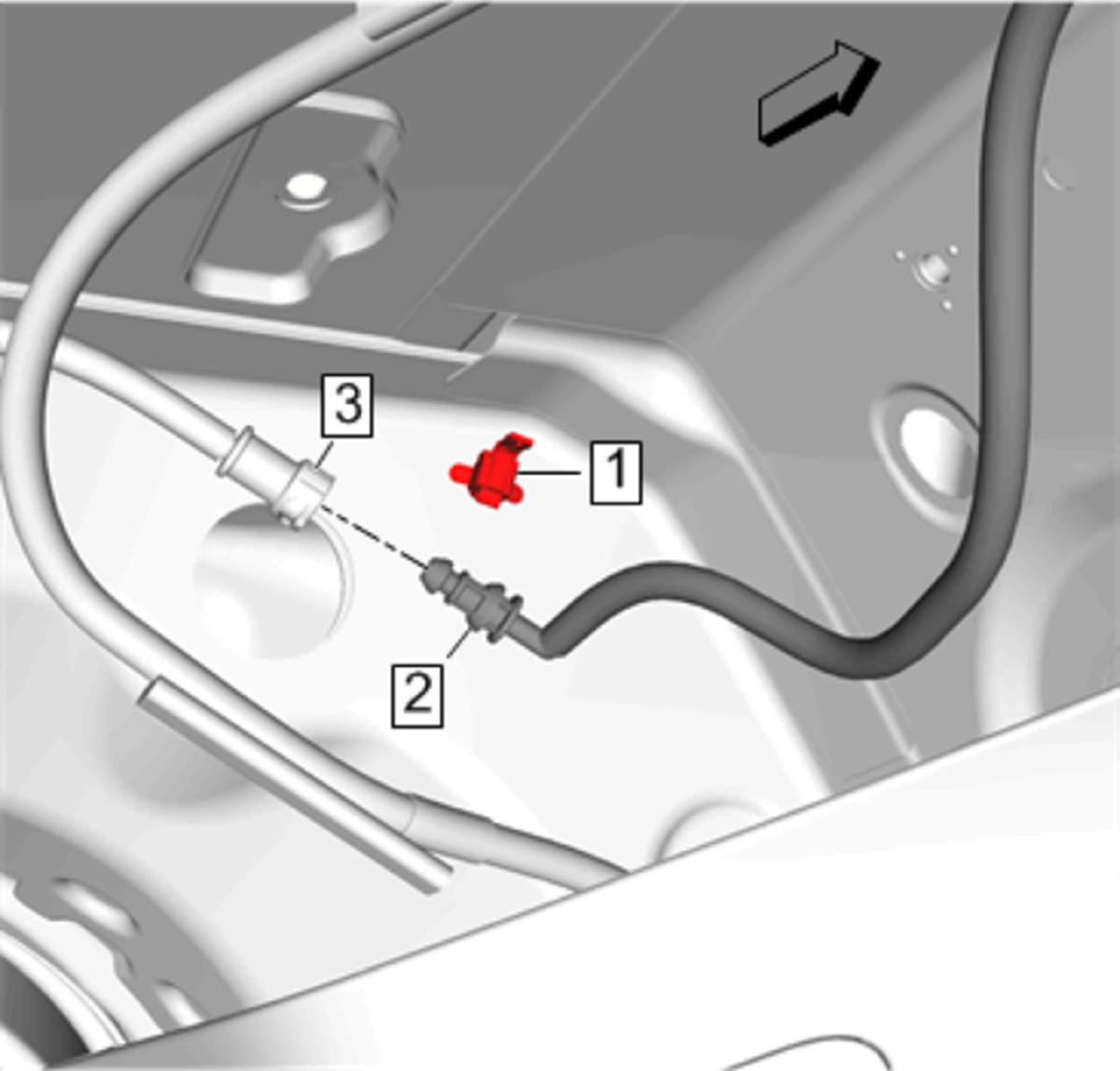

Fig 2: Rear Window Washer Nozzle Hose - Headliner And Retainer

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Reposition wiring harness and connectors as necessary to gain access to the part.

Disconnect Rear Window Washer Nozzle Hose - Headliner (1) @Rear Window Washer Nozzle Hose (2)
Rear Window Washer Nozzle Hose - Headliner (1) @Rear Window Washer Nozzle Hose Retainer (3)

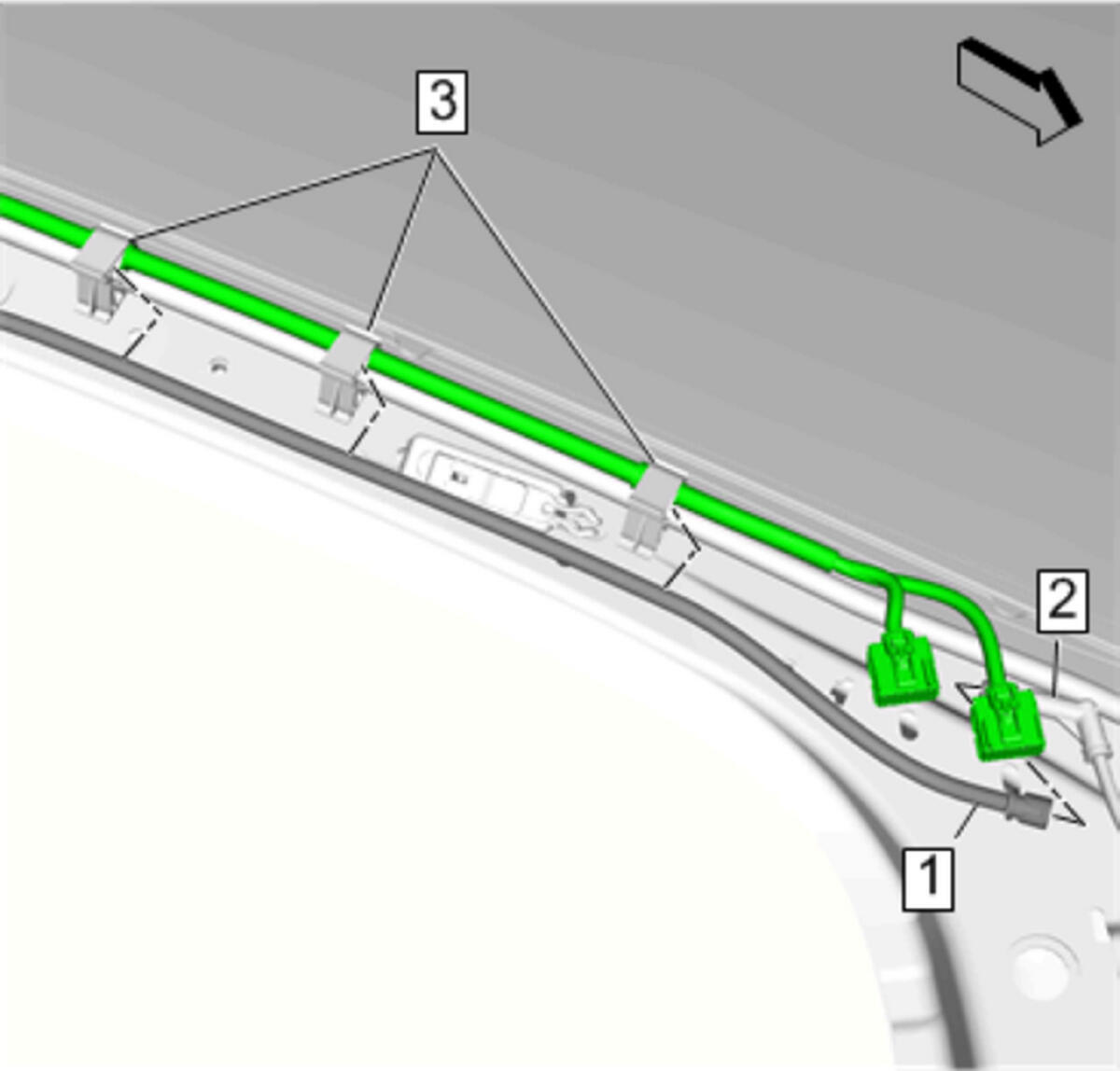

Fig 3: Rear Window Washer Nozzle Hose - Headliner And Windshield Washer Liftgate Extension Rear Hose

Courtesy of GENERAL MOTORS COMPANY

Remove the tie strap. (1)
Disconnect Rear Window Washer Nozzle Hose - Headliner (2) @Windshield Washer Liftgate Extension Rear Hose (3)
