Power Sunroof (C3U)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

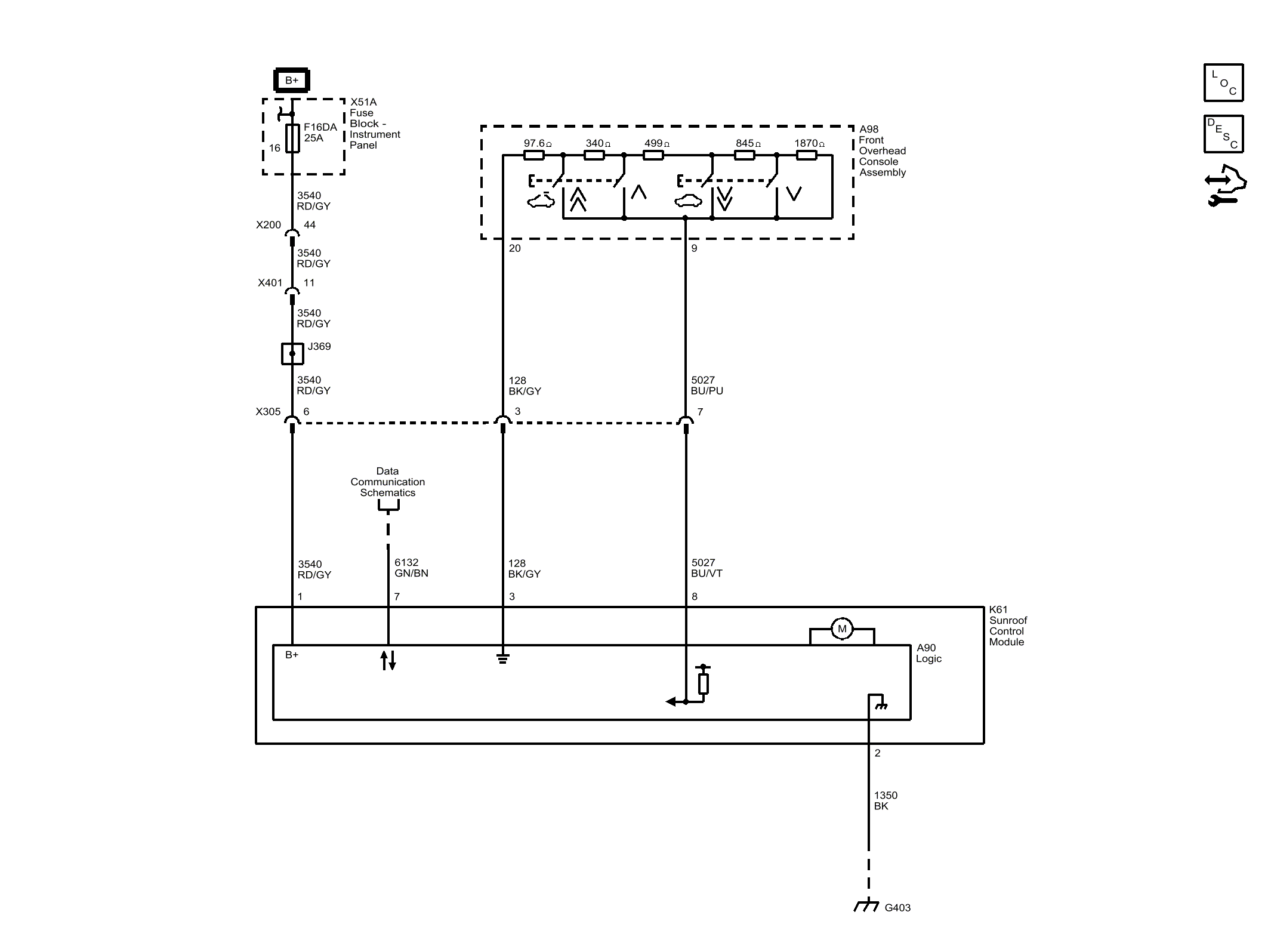

Fig 1: Power Sunroof (C3U)
GM4373402Courtesy of GENERAL MOTORS COMPANY
