Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Headlining Trim Panel - Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U)

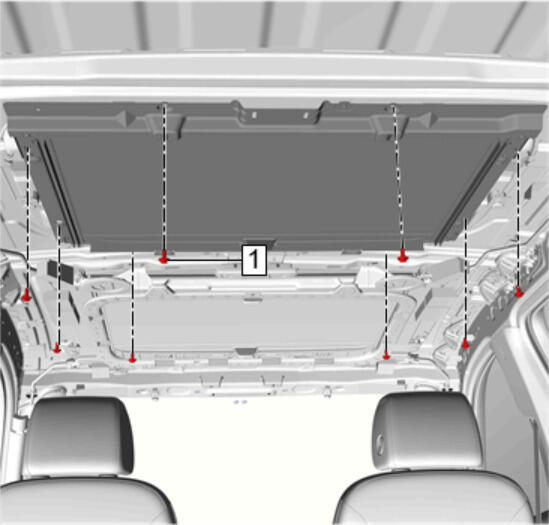

    2. Fig 1: Sunroof Sunshade Bolt
    GM4753909Courtesy of GENERAL MOTORS COMPANY
  2. Remove Sunroof Sunshade Bolt (1)

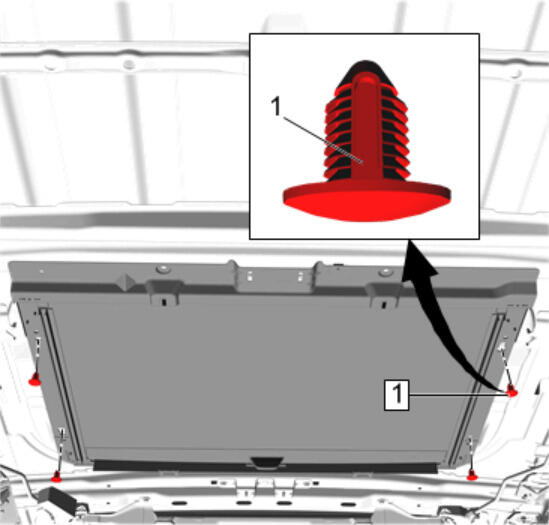

    3. Fig 2: Sunshade Push Pin
    GM4753918Courtesy of GENERAL MOTORS COMPANY
  3. Remove Sunshade Push Pin (1)

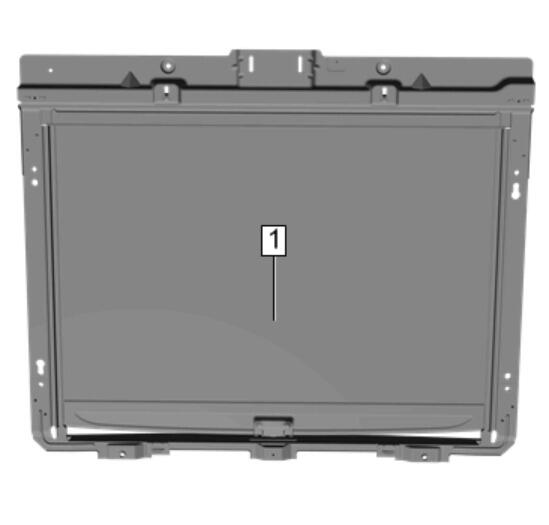

    4. Fig 3: Sunroof Sunshade
    GM4753930Courtesy of GENERAL MOTORS COMPANY
  4. Remove Sunroof Sunshade (1)
