Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

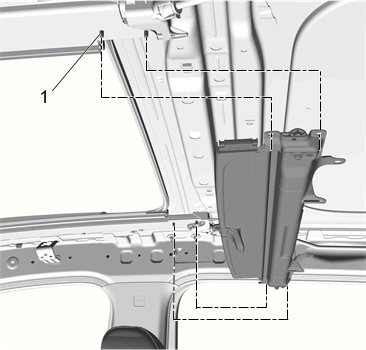

Fig 1: Sunroof Sunshade

Courtesy of GENERAL MOTORS COMPANY

Install Sunroof Sunshade (1)

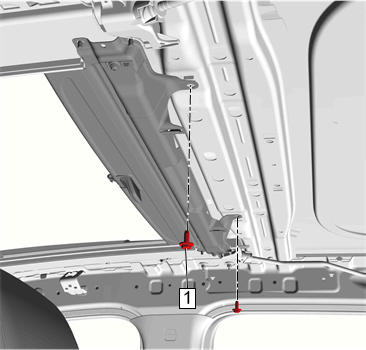

Fig 2: Sunroof Sunshade And Module Assembly Studs

Courtesy of GENERAL MOTORS COMPANY

Raise the sunroof sunshade to the module assembly studs. (1)

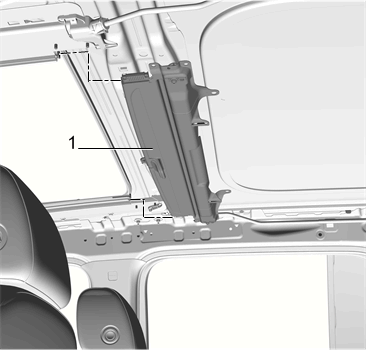

Fig 3: Sunroof Sunshade Bolt

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install Sunroof Sunshade Bolt and tighten 9 N.m (80 lb in)
Install Headlining Trim Panel - Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U)
