Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Sunroof Sunshade
    GM4753930Courtesy of GENERAL MOTORS COMPANY
  1. Remove Sunroof Sunshade (1) Sunroof Sunshade Replacement (Rear)

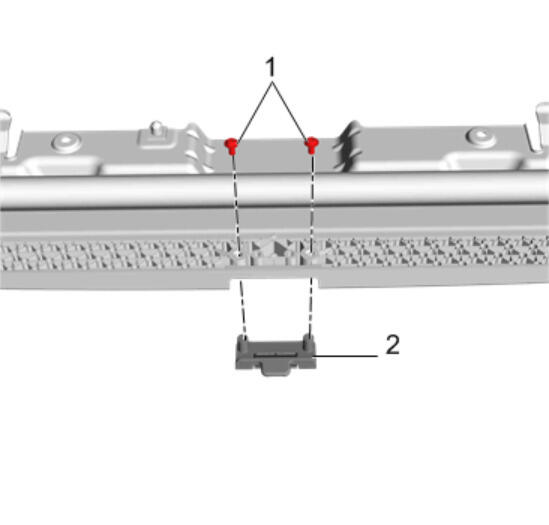

    2. Fig 2: Sunroof Sunshade Handle Screw And Sunshade Locking Handle
    GM4755142Courtesy of GENERAL MOTORS COMPANY
  2. Remove the sunroof sunshade handle screw (1) from the sunroof sunshade handle.(2)
