Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

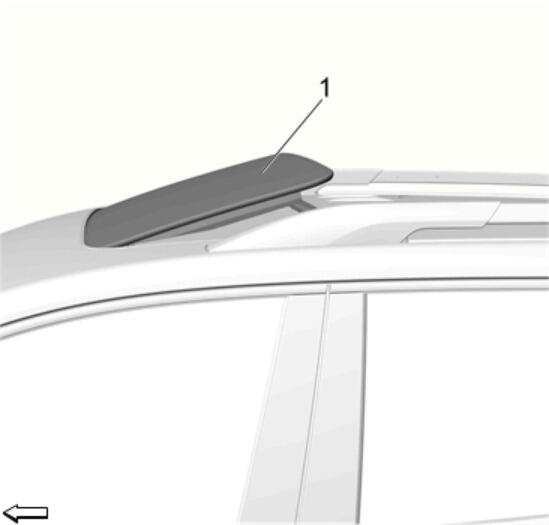

    Fig 1: Sunroof
    GM4645351Courtesy of GENERAL MOTORS COMPANY
  1. Place the sunroof (1) in the vent position.

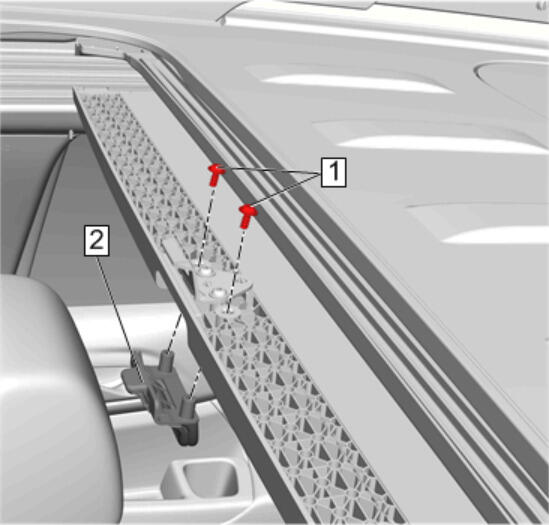

    2. Fig 2: Sunroof Sunshade Handle Screw And Sunshade Locking Handle
    GM4645378Courtesy of GENERAL MOTORS COMPANY

  2. Remove the sunroof sunshade handle screw (1) from the sunshade locking handle.(2)
