Steering Wheel Controls

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

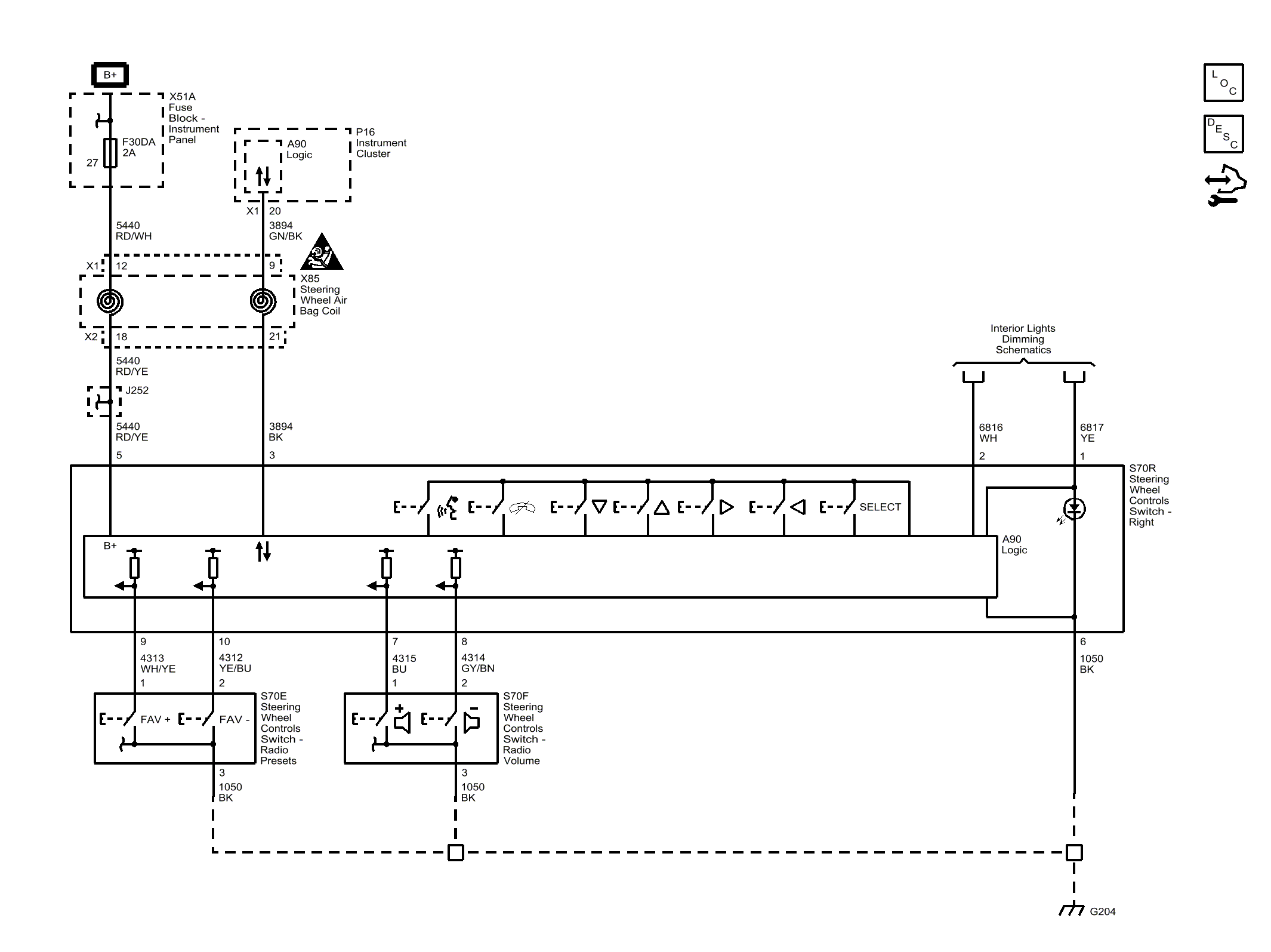

Fig 1: Steering Wheel Controls
GM4373117Courtesy of GENERAL MOTORS COMPANY
