Rear Side Door Weatherstrip Replacement - Door Side

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

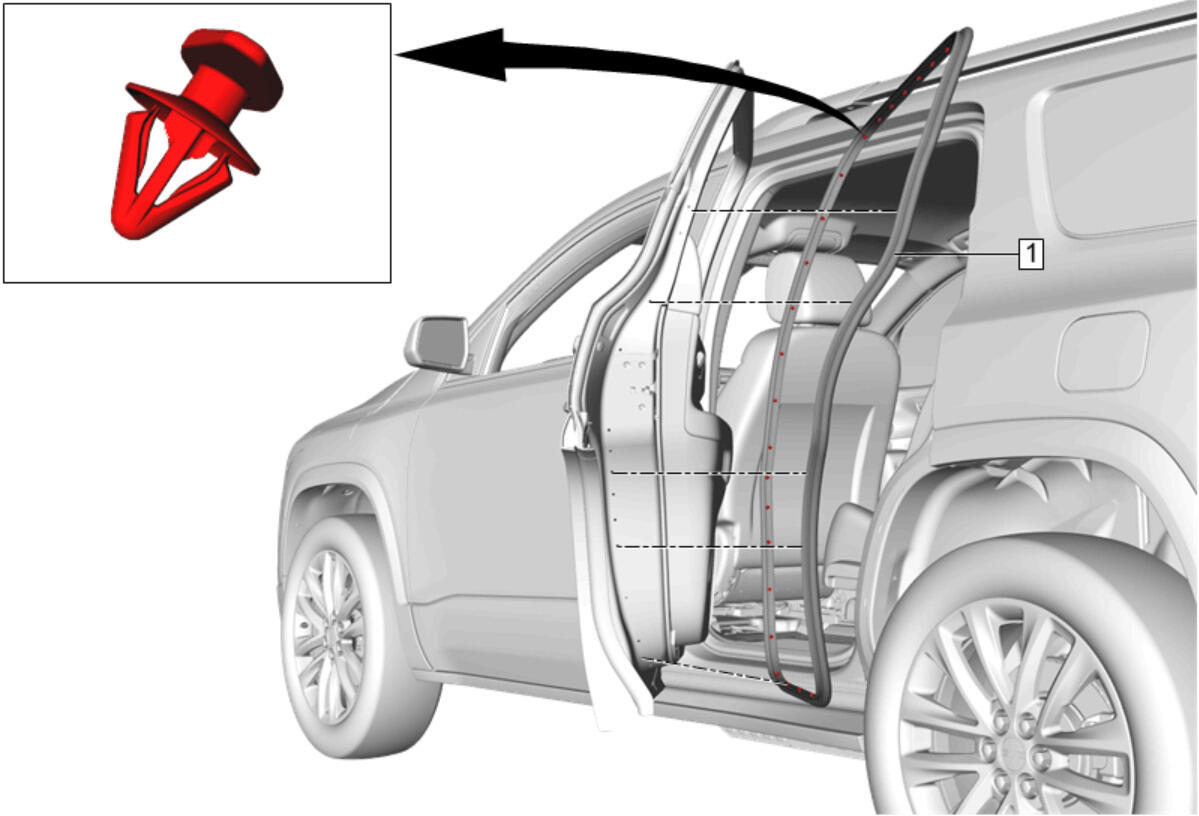

Fig 1: Rear Side Door Weatherstrip- Door Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Side Door Check Link Replacement
1	Rear Side Door Weatherstrip - Door Side Procedure Using the appropriate tool, remove the weatherstrip retainers from around the door flange. Carefully pull the window weatherstrip from the door flange.

Callout

Component Name

Preliminary Procedure
Rear Side Door Check Link Replacement

Rear Side Door Weatherstrip - Door Side

Procedure

Using the appropriate tool, remove the weatherstrip retainers from around the door flange.
Carefully pull the window weatherstrip from the door flange.
