Rear Side Door Below Belt Rear Auxiliary Weatherstrip Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

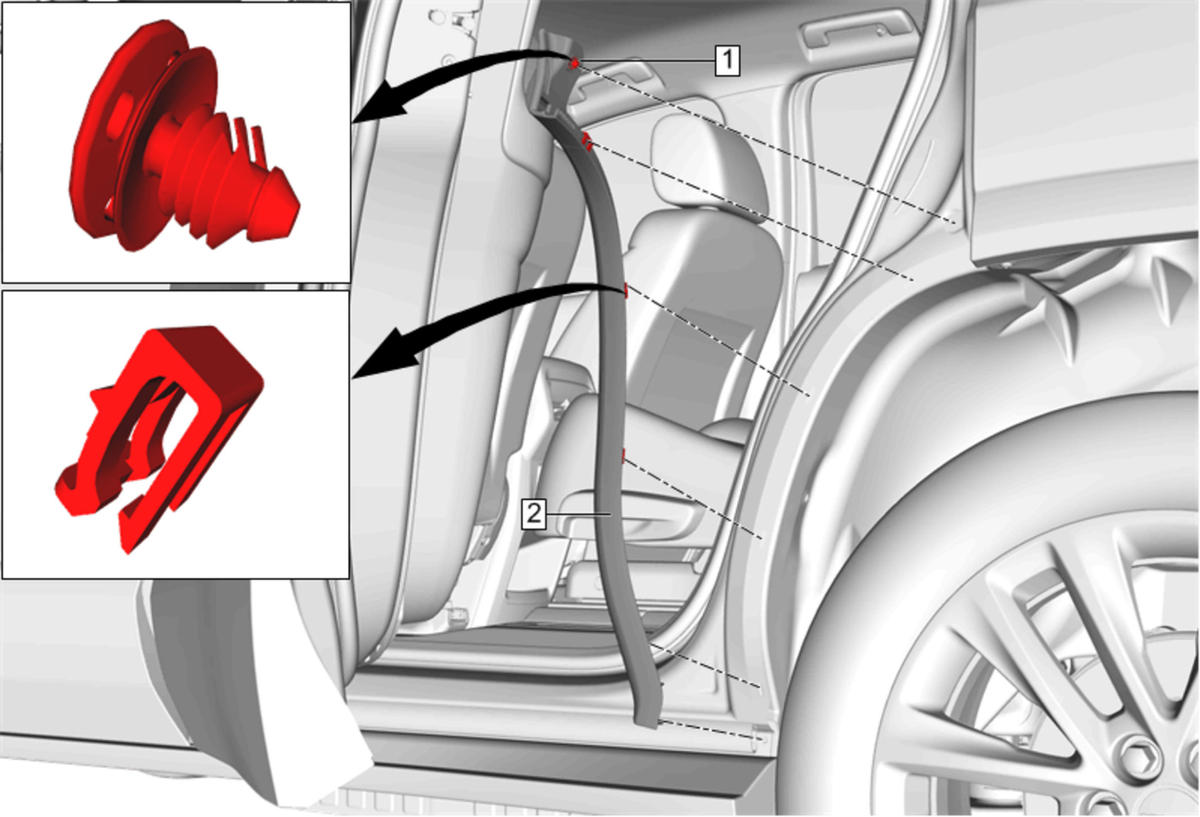

| Callout |
Component Name |
Preliminary Procedure
Open the rear door. |
| 1 |
Rear Side Door Below Belt Rear Auxiliary Weatherstrip Retainer (Qty: 6)
Procedure
Using the appropriate tool, remove the rear side door below belt rear auxiliary weatherstrip. |
| 2 |
Rear Side Door Below Belt Rear Auxiliary Weatherstrip |
