Heated Steering Wheel (UVD)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

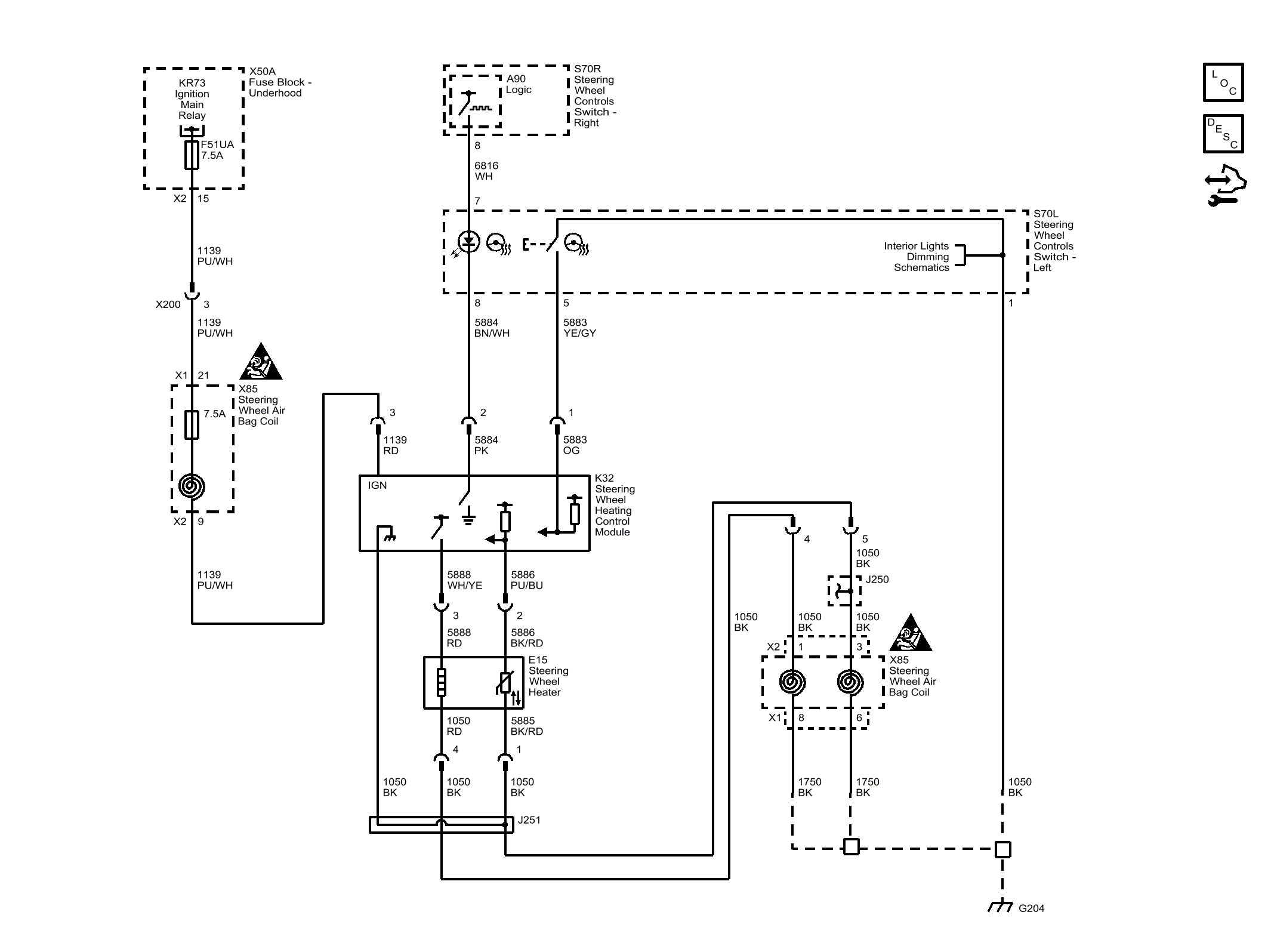

Fig 1: Heated Steering Wheel (UVD)
GM4373451Courtesy of GENERAL MOTORS COMPANY
