Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

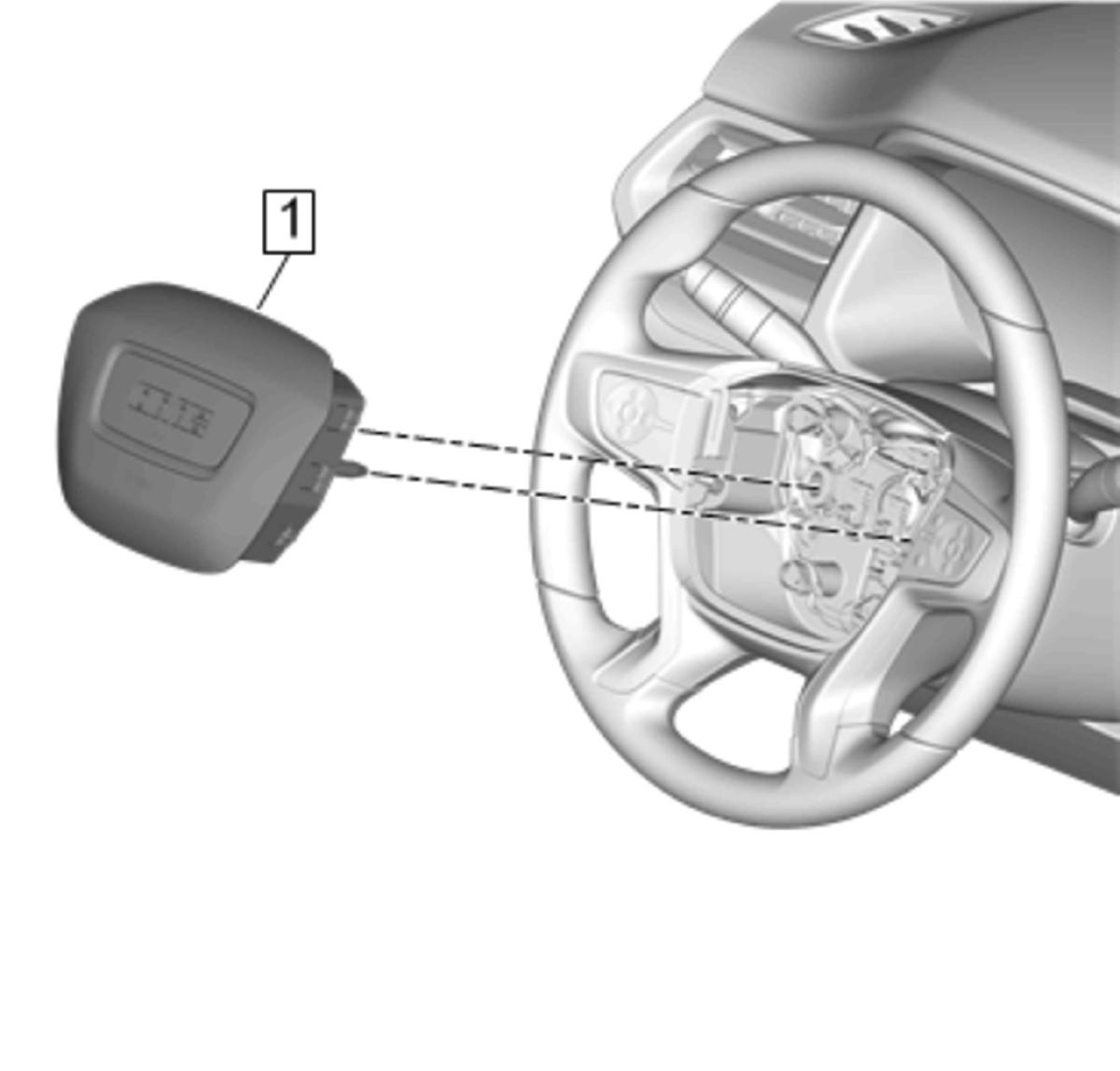

    Fig 1: Steering Wheel Airbag
    GM4380751Courtesy of GENERAL MOTORS COMPANY
  1. Remove Steering Wheel Airbag (1) - Steering Wheel Airbag Replacement (With 3 Pin Design)Steering Wheel Airbag Replacement (With 2 Pin Design)

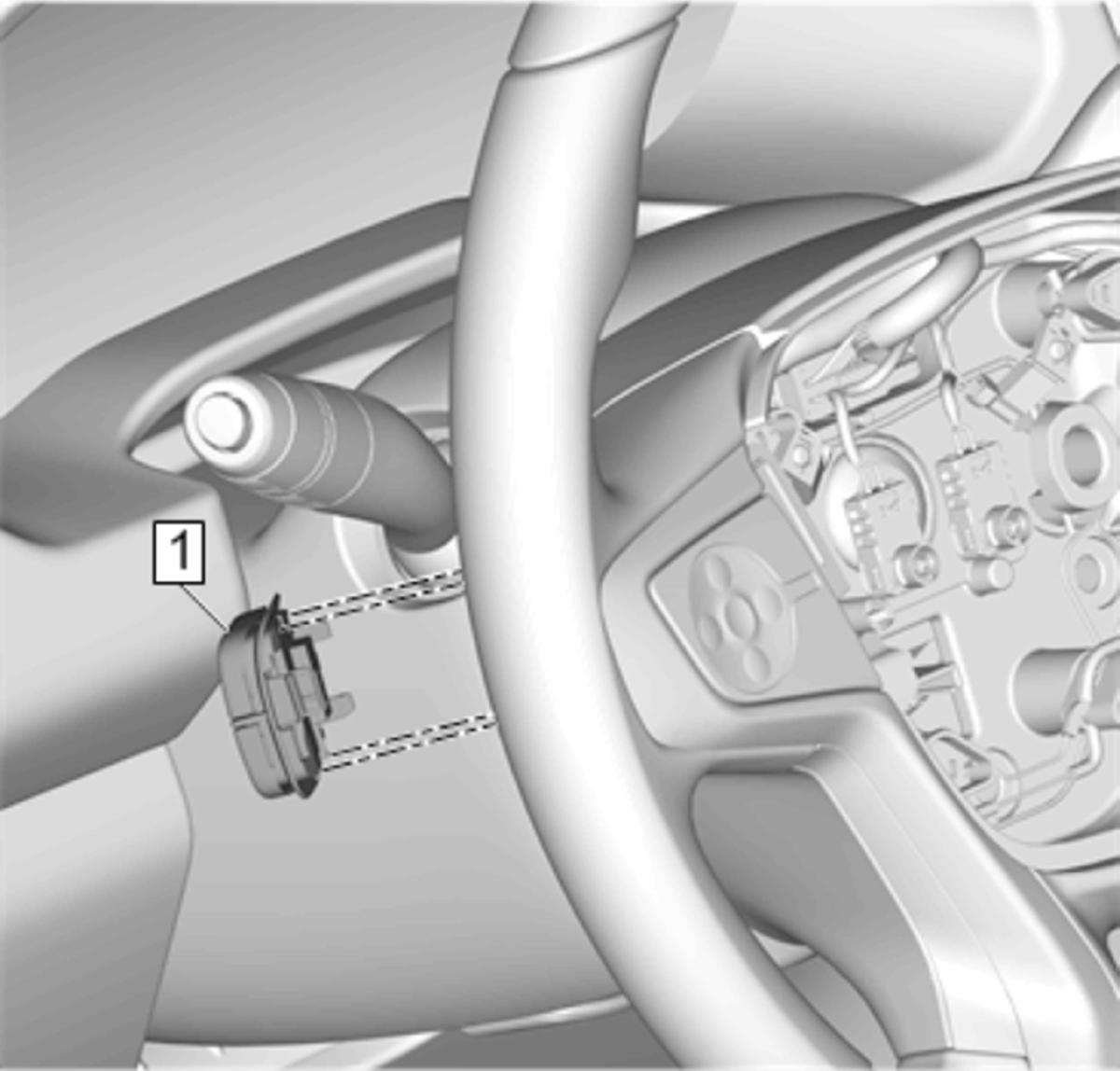

    2. Fig 2: Radio Control Switch Steering Wheel
    GM4380732Courtesy of GENERAL MOTORS COMPANY
  2. Remove Radio Control Switch Steering Wheel - Left rear (1) Radio Control Switch Replacement - Steering Wheel (Left Rear)

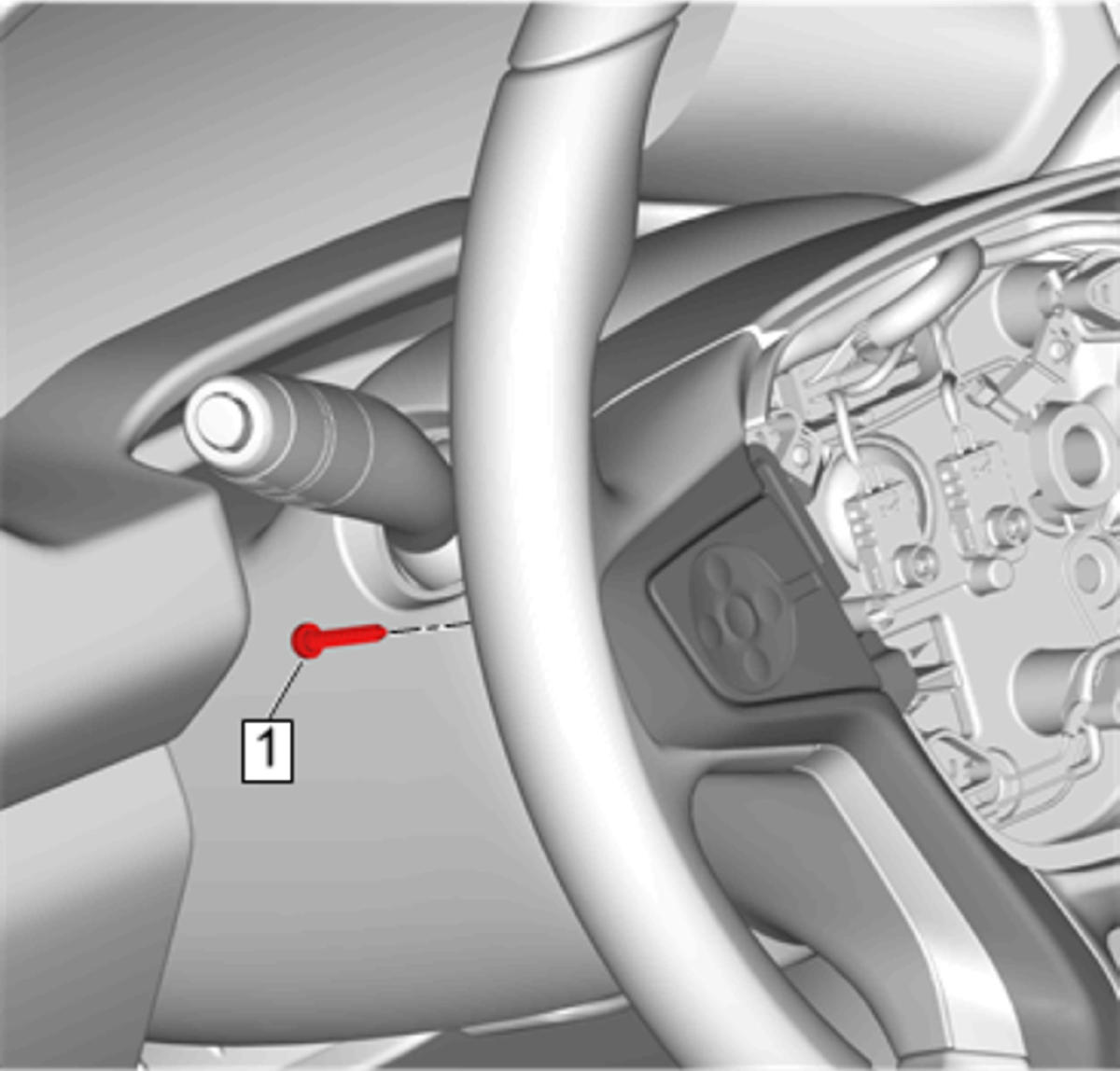

    3. Fig 3: Steering Wheel Spoke Cover Fastener-Left Rear
    GM4380733Courtesy of GENERAL MOTORS COMPANY
  3. Remove Steering Wheel Spoke Cover Fastener-Left Rear (1)

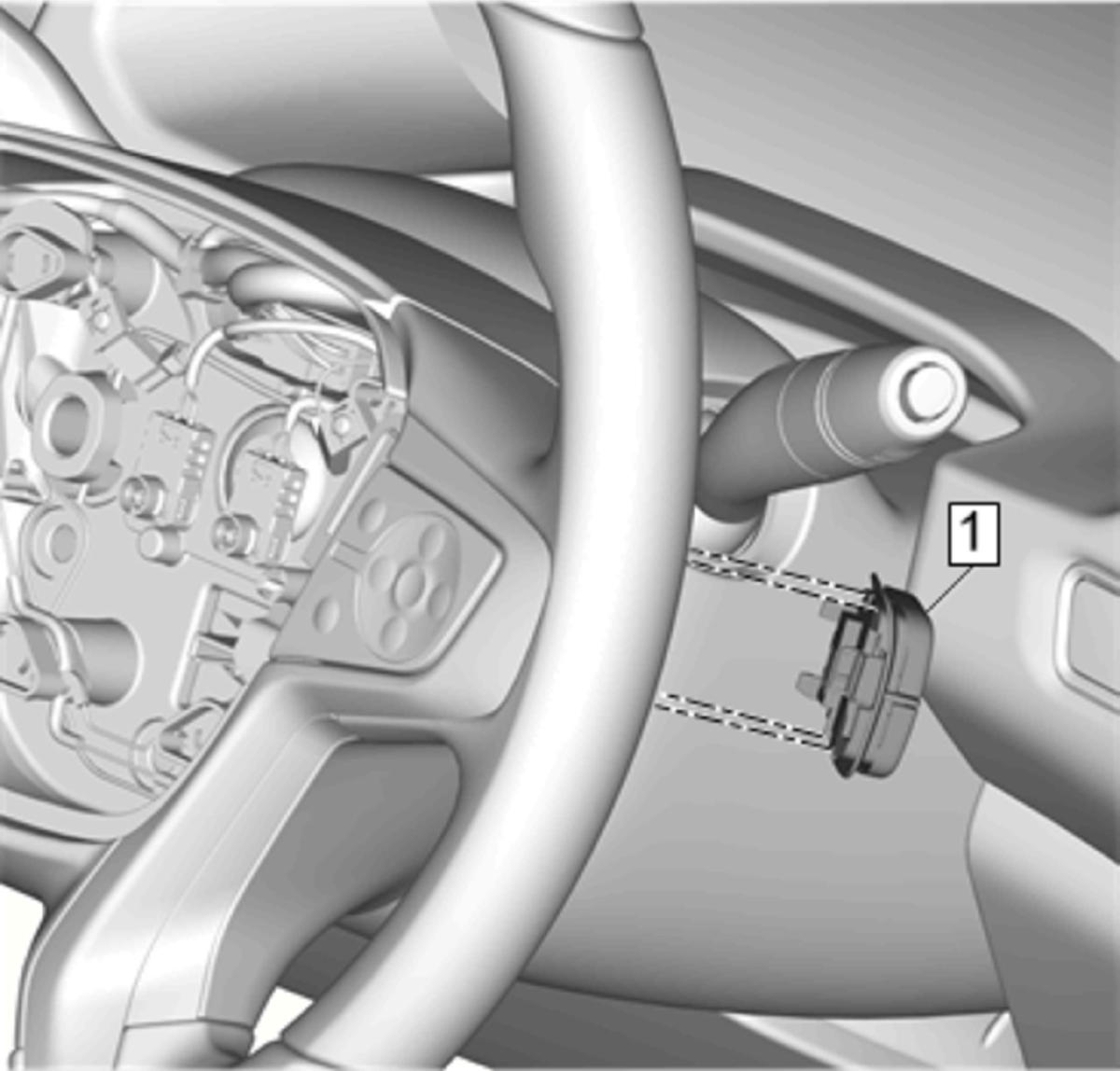

    4. Fig 4: Radio Control Switch - Steering Wheel
    GM4380730Courtesy of GENERAL MOTORS COMPANY
  4. Remove Radio Control Switch - Steering Wheel-Right Rear (1) -Radio Control Switch Replacement - Steering Wheel (Right Rear)

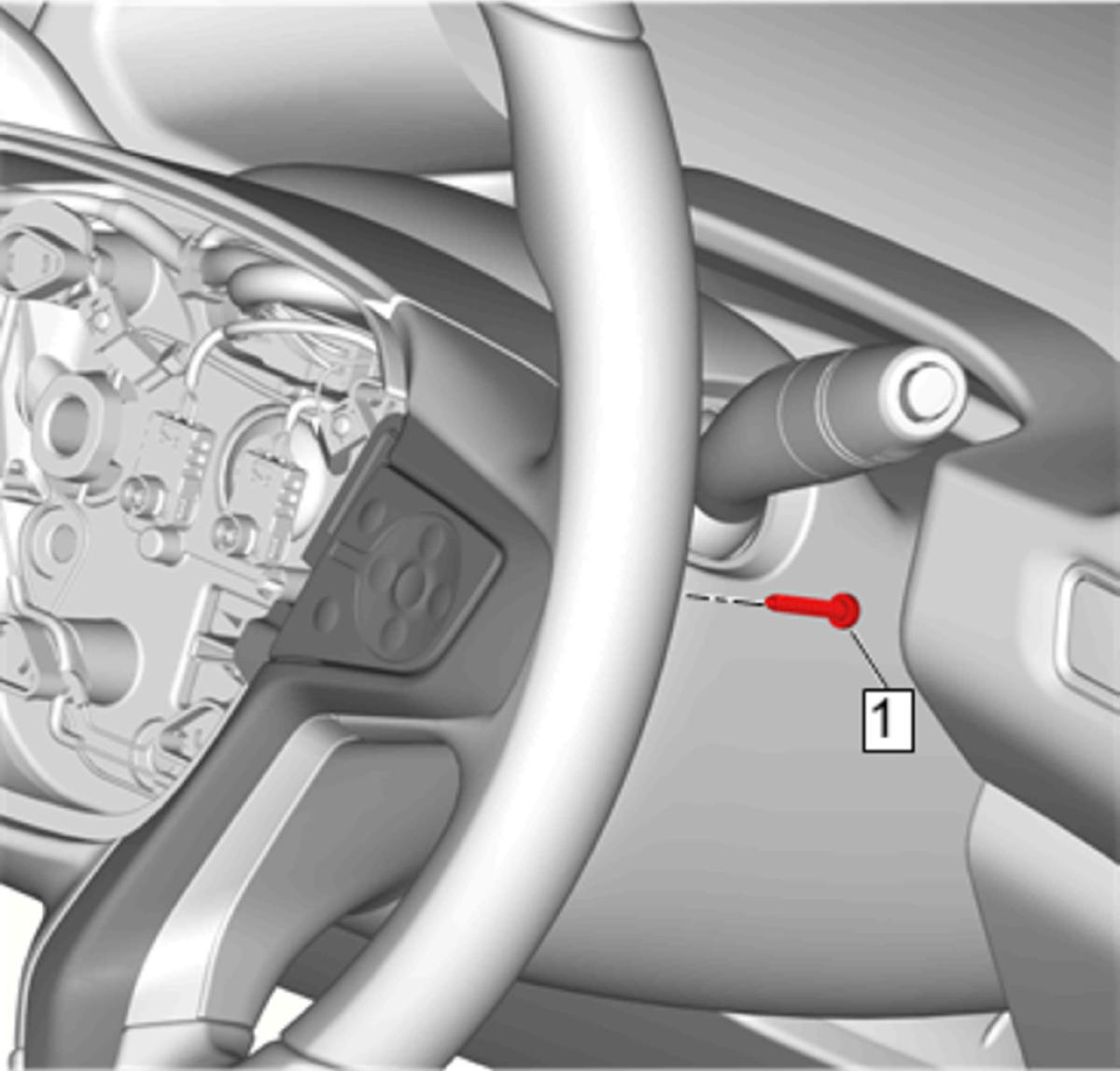

    5. Fig 5: Steering Wheel Spoke Cover Fastener-Right Rear
    GM4380731Courtesy of GENERAL MOTORS COMPANY
  5. Remove Steering Wheel Spoke Cover Fastener-Right Rear (1)
  6. Perform the following steps to remove the steering wheel spoke cover (1):
    1. Disconnect the electrical connectors.
    2. Use a flat bladed plastic tool to release the steering wheel spoke cover, cruise control switch, and radio control switch from the steering wheel.
  7. Transfer components as necessary.
