Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

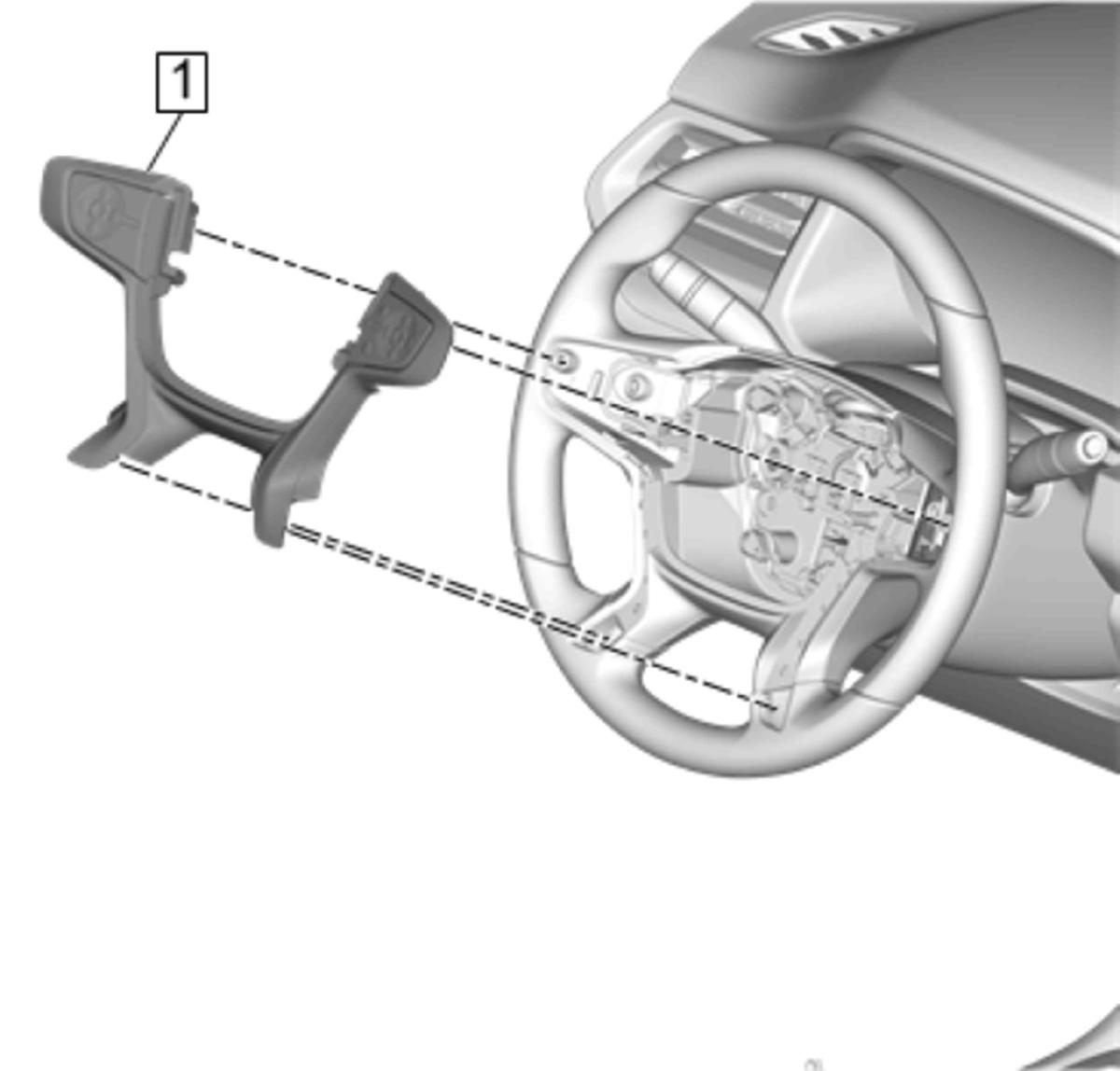

    Fig 1: Steering Wheel Spoke Cover
    GM4380734Courtesy of GENERAL MOTORS COMPANY
  1. Perform the following steps to install the steering wheel spoke cover (1):
    1. Secure the steering wheel spoke cover, cruise control switch, and radio control switch to the steering wheel.
    2. Connect the electrical connectors.
    2. Fig 2: Steering Wheel Spoke Cover Fastener-Right Rear
    GM4380731Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Steering Wheel Spoke Cover Fastener-Right Rear (1) and tighten 2.5 N.m (22 lb in)
    3. Fig 3: Radio Control Switch - Steering Wheel
    GM4380730Courtesy of GENERAL MOTORS COMPANY
  3. Install Radio Control Switch - Steering Wheel-Right Rear (1)Radio Control Switch Replacement - Steering Wheel (Right Rear)
    4. Fig 4: Steering Wheel Spoke Cover Fastener-Left Rear
    GM4380733Courtesy of GENERAL MOTORS COMPANY
  4. Install Steering Wheel Spoke Cover Fastener-Left Rear (1) and tighten 2.5 N.m (22 lb in)
    5. Fig 5: Radio Control Switch Steering Wheel
    GM4380732Courtesy of GENERAL MOTORS COMPANY
  5. Install Radio Control Switch - Steering Wheel-Left Rear (1) Radio Control Switch Replacement - Steering Wheel (Left Rear)
    6. Fig 6: Steering Wheel Airbag
    GM4380751Courtesy of GENERAL MOTORS COMPANY
  6. Install Steering Wheel Airbag (1) - Steering Wheel Airbag Replacement (With 3 Pin Design)Steering Wheel Airbag Replacement (With 2 Pin Design)
