Steering Column Tilt and Telescope Wheel Actuator Motor Harness Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Knee Bolster Replacement |
|

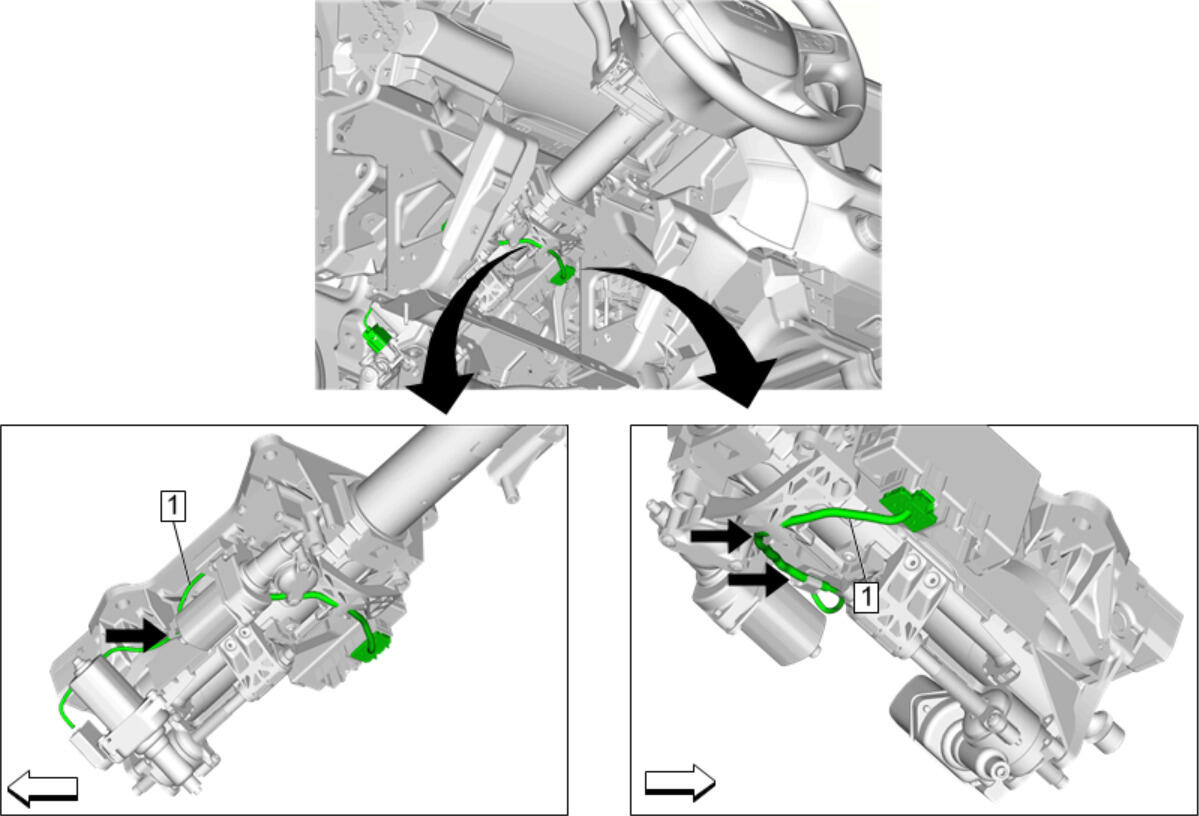

| 1 | Steering Column Tilt and Telescope Wheel Actuator Motor Harness Procedure Disconnect the electrical connectors.
NOTE:
The steering column tilt and telescope wheel actuator harness MUST be routed in the same position and in the proper retainers on the steering column as noted before removal. |
