Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

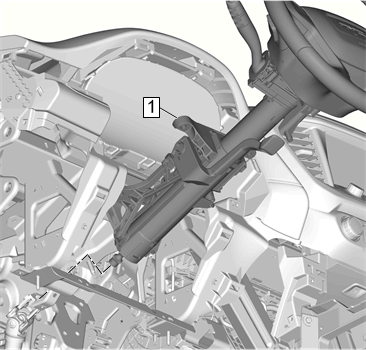

    Fig 1: Steering Column
    GM4380743Courtesy of GENERAL MOTORS COMPANY
  1. Position the steering column (1) in the vehicle.

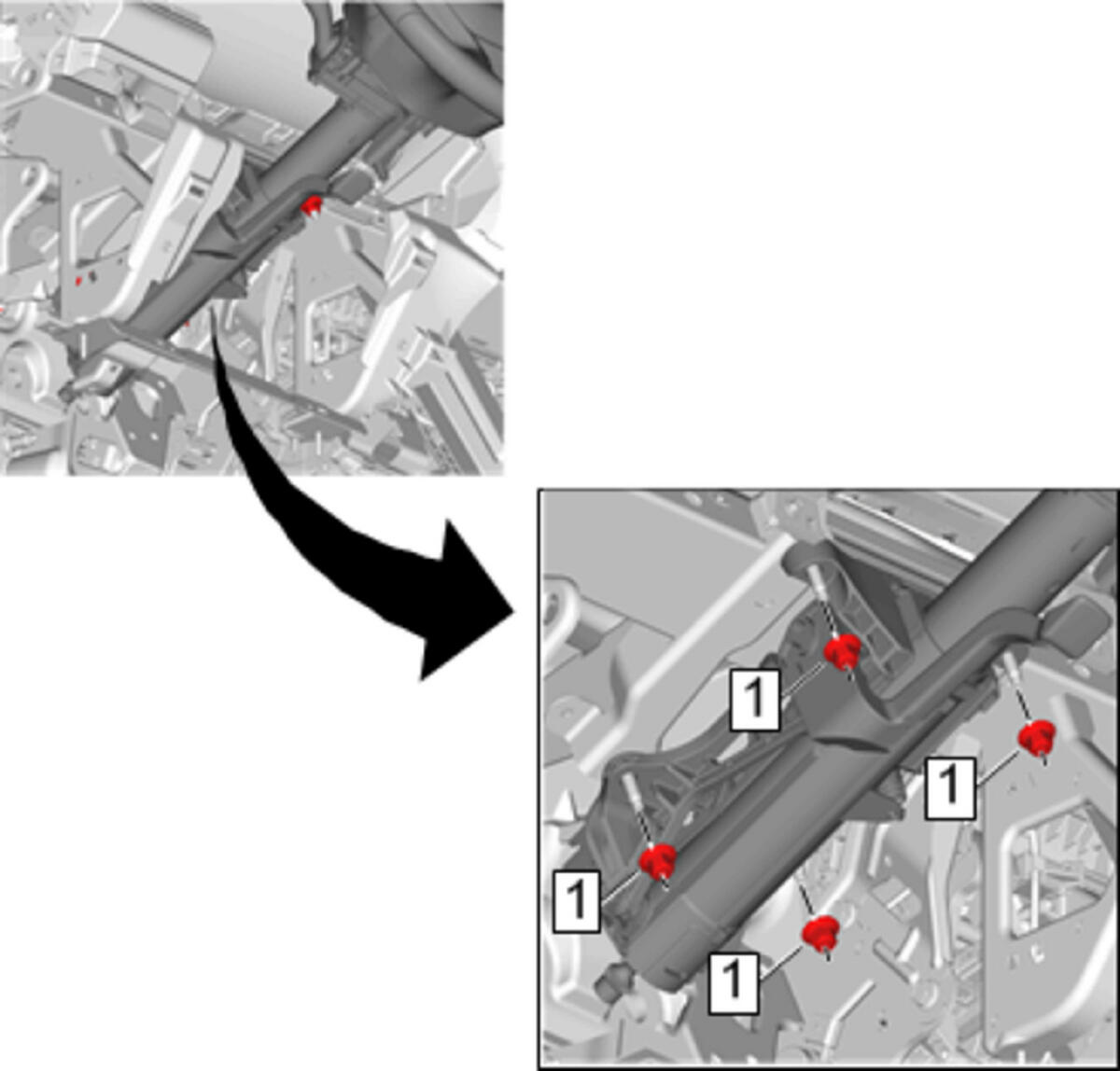

    2. Fig 2: Steering Column Nut
    GM4380742Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Steering Column Nut (1) and tighten 22 N.m (16 lb ft)

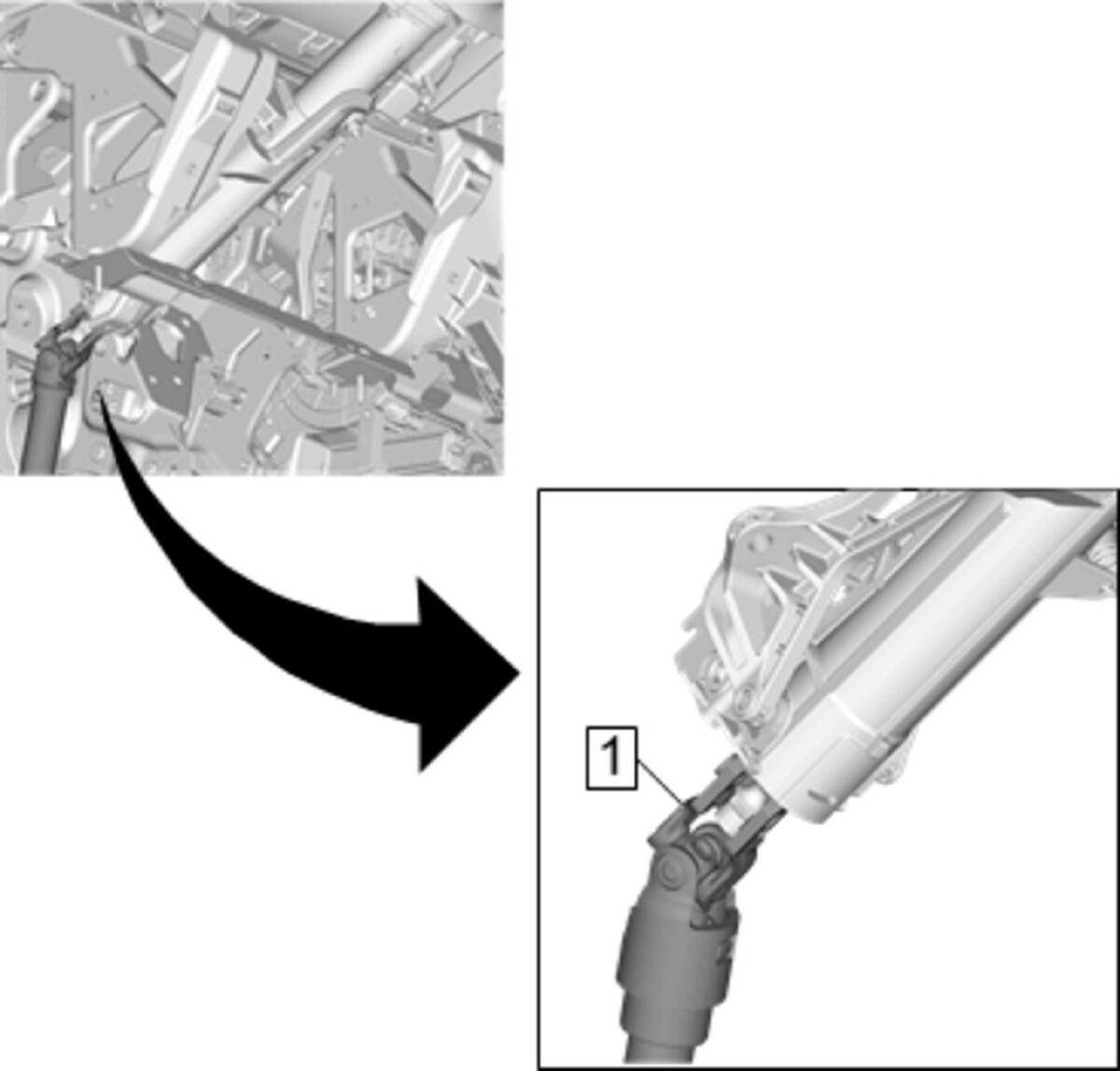

    3. Fig 3: Intermediate Steering Shaft
    GM4380741Courtesy of GENERAL MOTORS COMPANY
  3. Install Intermediate Steering Shaft (1) @Steering Column Intermediate Steering Shaft Replacement
  4. Connect the steering column electrical connectors.

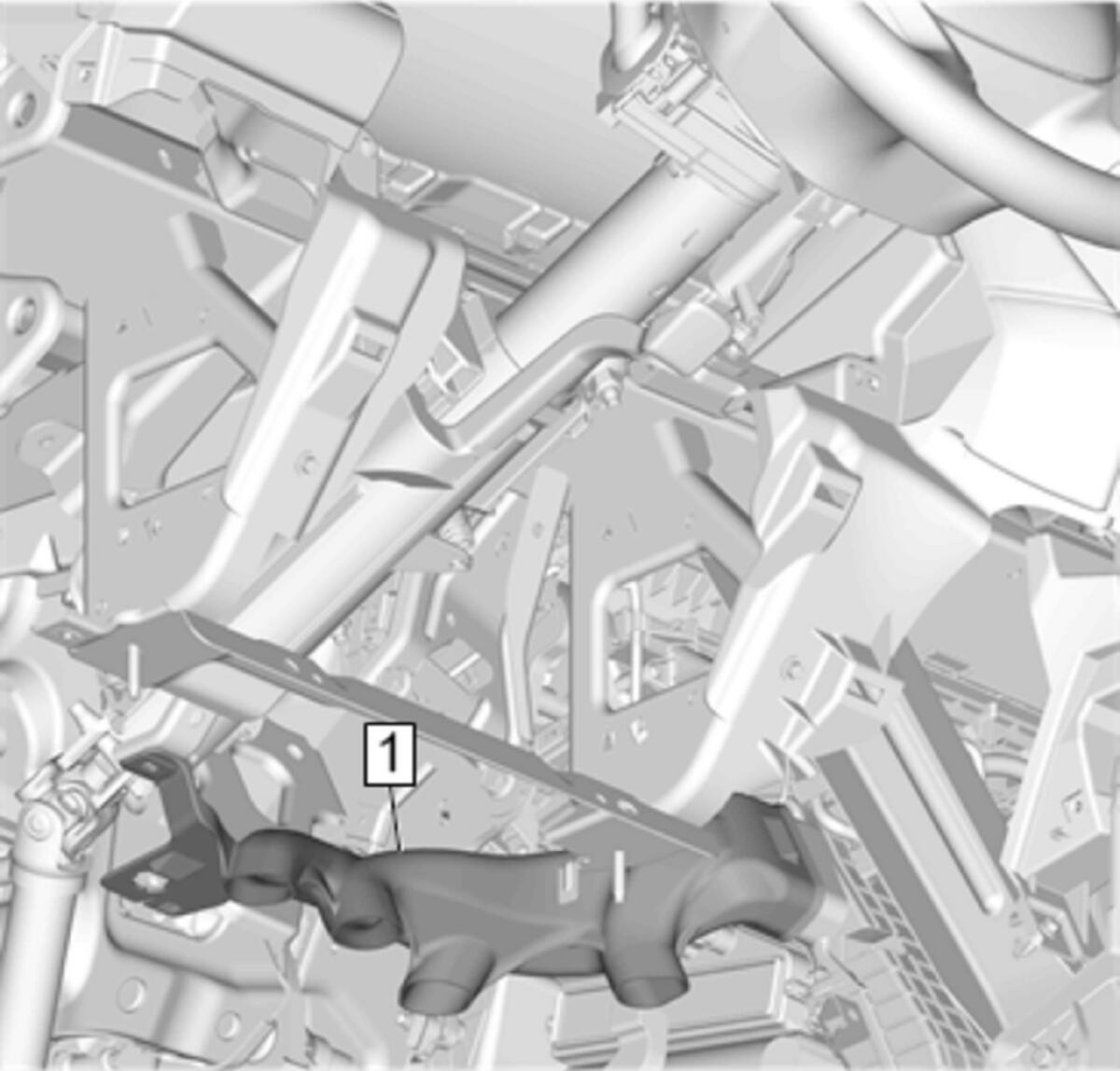

    5. Fig 4: Floor Front Air Outlet Duct
    GM4380740Courtesy of GENERAL MOTORS COMPANY
  5. Install Floor Front Air Outlet Duct - Left Side (1) Floor Front Air Outlet Duct Replacement - Left Side

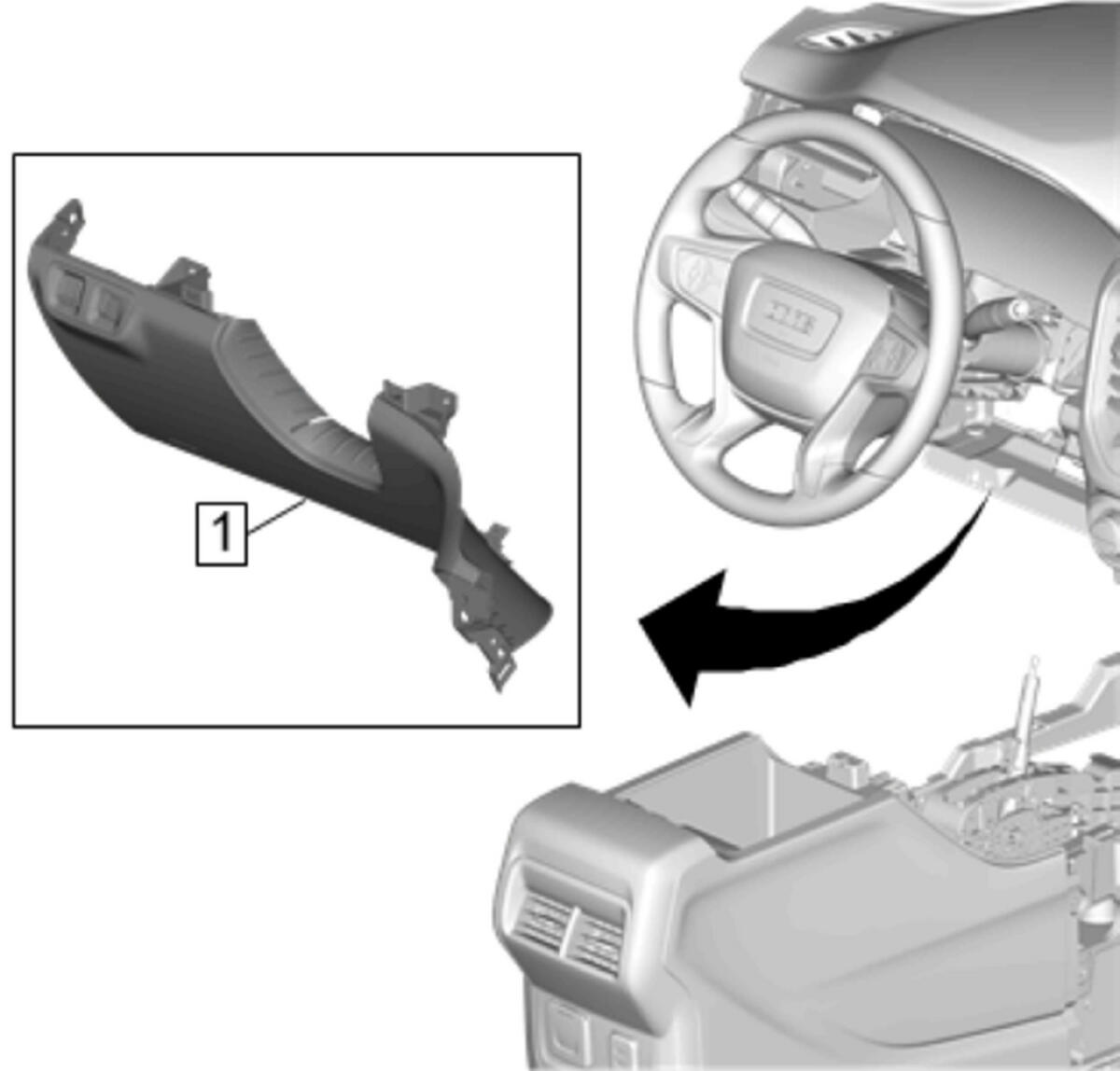

    6. Fig 5: Instrument Panel Knee Bolster
    GM4380739Courtesy of GENERAL MOTORS COMPANY
  6. Install Instrument Panel Knee Bolster (1) - Instrument Panel Knee Bolster Replacement
  7. Enable the SIR System. SIR Disabling and Enabling

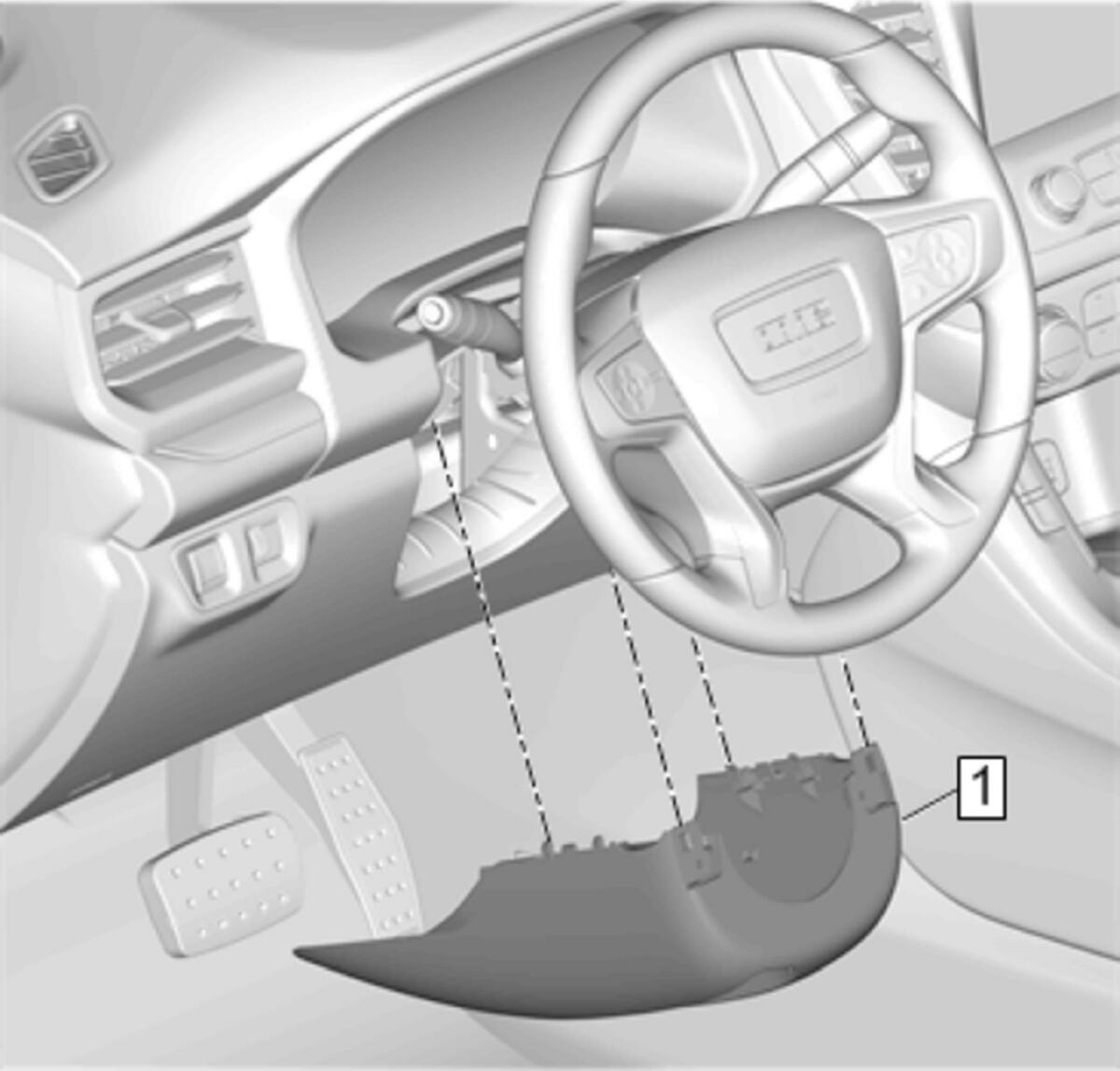

    8. Fig 6: Steering Column Lower Trim Cover
    GM4380738Courtesy of GENERAL MOTORS COMPANY
  8. Install Steering Column Lower Trim Cover (1) - Steering Column Lower Trim Cover Replacement (RPO N37)
  9. Center the steering angle sensor. Steering Wheel Angle Sensor Centering
