Steering Column Dash Inner Seal Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

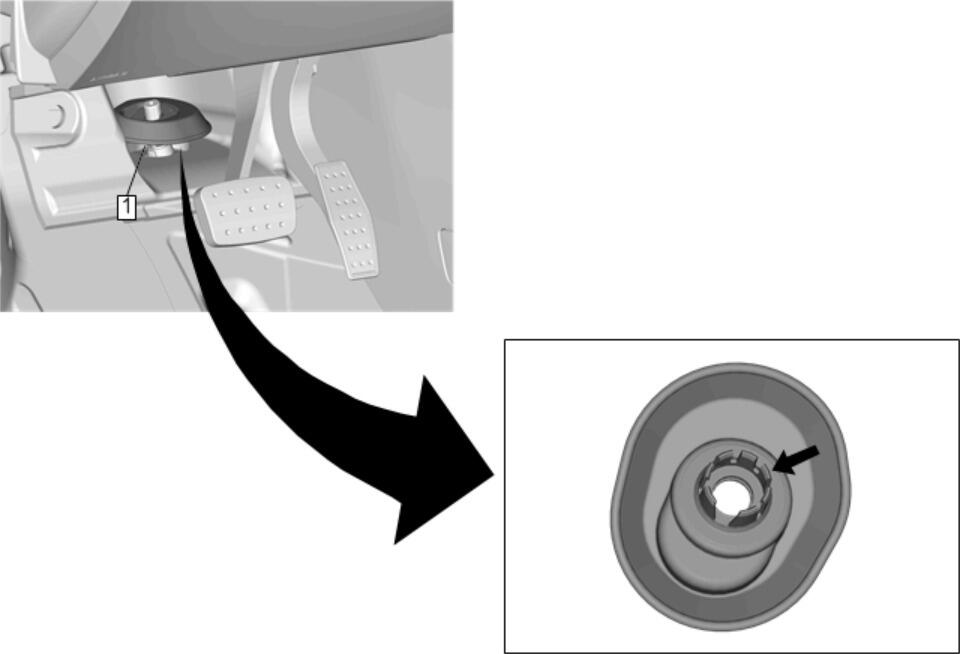

Fig 1: Steering Column Dash Inner Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Separate Intermediate Steering Shaft@Steering Gear Intermediate Steering Shaft Replacement
1	Steering Column Dash Inner Seal Procedure To remove the steering column dash inner seal, lift the edge of the seal and release the plastic retaining tabs from the steering gear input shaft. To install the steering column dash inner seal, push the seal until the plastic retaining tabs engage the steering gear input shaft.

Callout

Component Name

Preliminary Procedure
Separate Intermediate Steering Shaft@Steering Gear Intermediate Steering Shaft Replacement

Steering Column Dash Inner Seal

Procedure

To remove the steering column dash inner seal, lift the edge of the seal and release the plastic retaining tabs from the steering gear input shaft.
To install the steering column dash inner seal, push the seal until the plastic retaining tabs engage the steering gear input shaft.
