Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

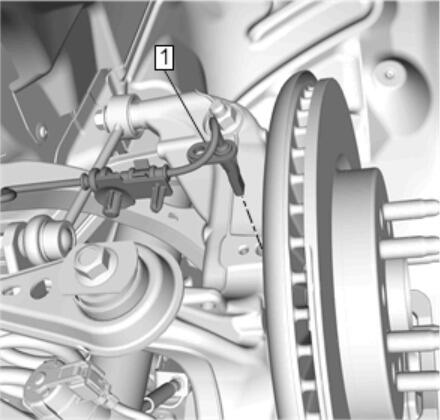

Fig 1: Wheel Speed Sensor

Courtesy of GENERAL MOTORS COMPANY

Install Wheel Speed Sensor (1)

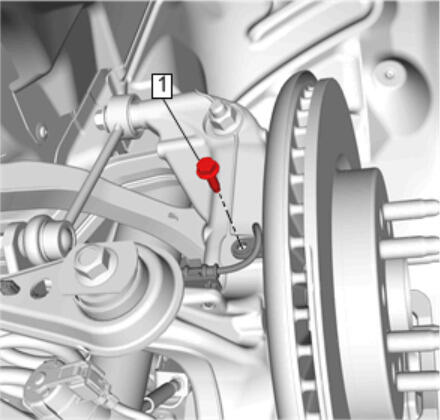

Fig 2: Wheel Speed Sensor Bolt

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution

Install and tighten Wheel Speed Sensor Bolt (1) to 9 N.m (80 lb in)

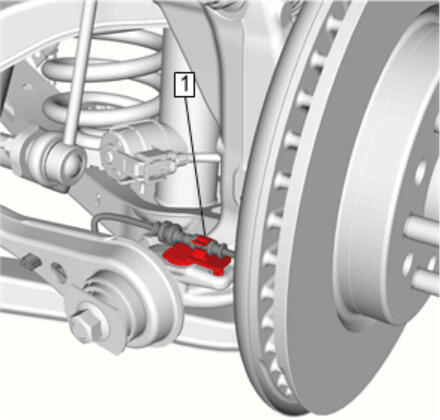

Fig 3: Retainer

Courtesy of GENERAL MOTORS COMPANY

Secure Retainer (1) @ Knuckle

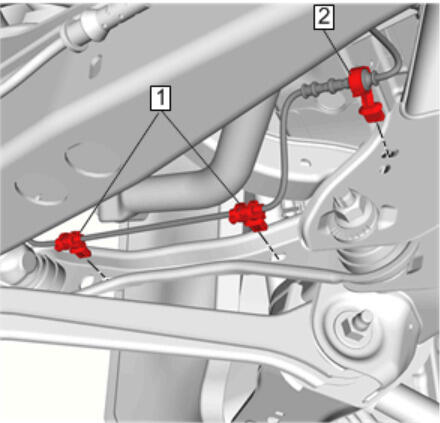

Fig 4: Retainers

Courtesy of GENERAL MOTORS COMPANY

Secure Retainers (1) (Qty: 2) @ Rear Toe Link
Secure Retainer (2) @ Rear Toe Link Bracket

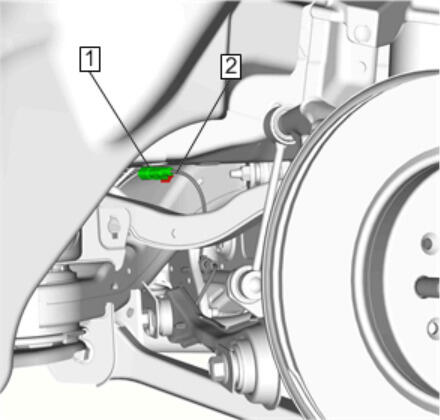

Fig 5: Wheel Speed Sensor Electrical Connector and Retainer

Courtesy of GENERAL MOTORS COMPANY

Connect Wheel Speed Sensor Electrical Connector (1)
Secure Retainer (2) @ Rear Cradle
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
Verify the repair is complete. Refer to Diagnostic Repair Verification
