Vented Seat - Driver (KU9)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

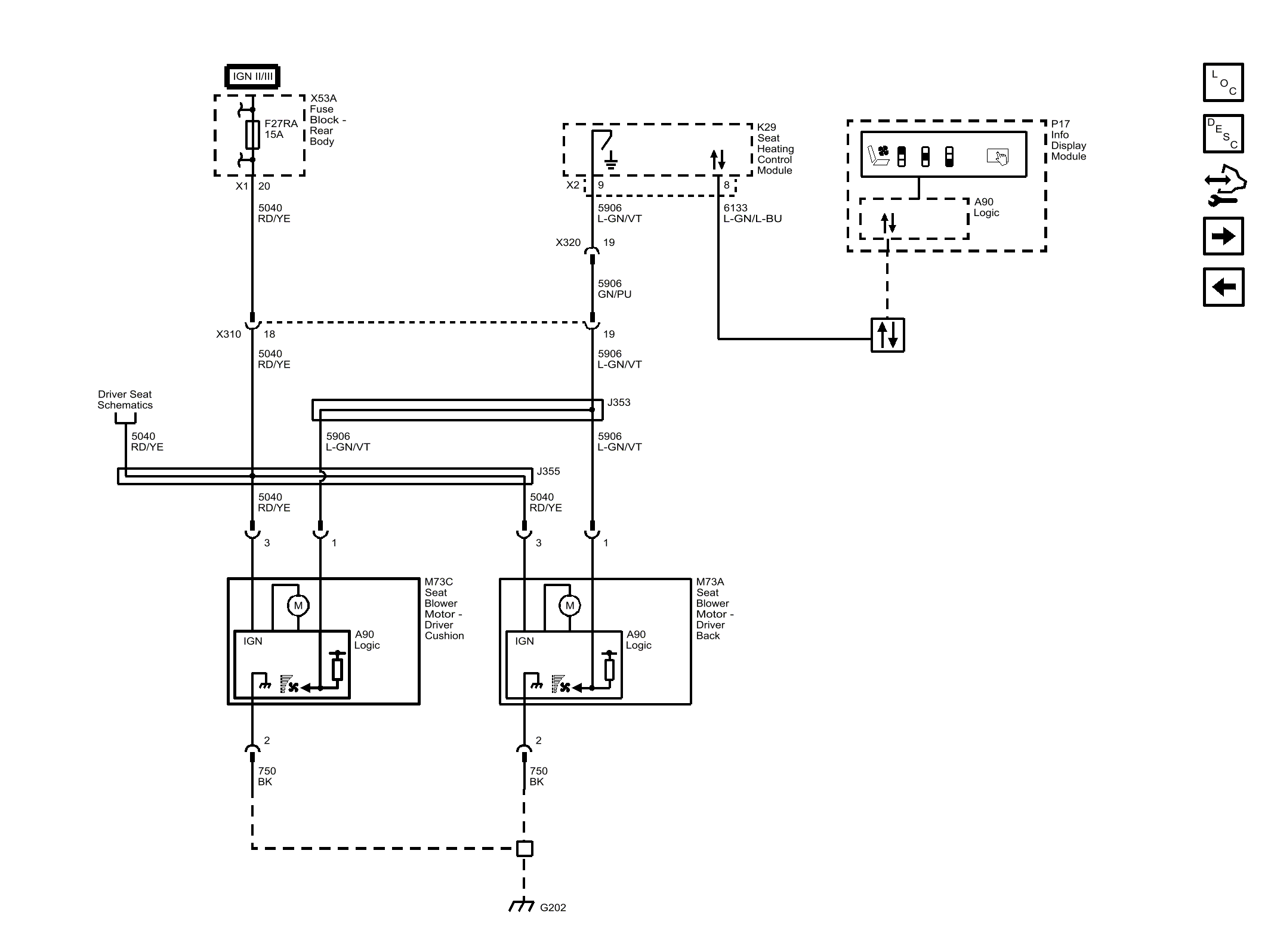

Fig 1: Vented Seat - Driver (KU9)
GM4373448Courtesy of GENERAL MOTORS COMPANY
