Section 336 (Seat Heating System And Seat Cooling System)
>>
Schematic Wiring Diagrams
>>
Heated/Cooled Seat Wiring Schematics
>>
Power, Ground, Serial Data and Switches (KA1)
Power, Ground, Serial Data and Switches (KA1)
WARNING:
This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

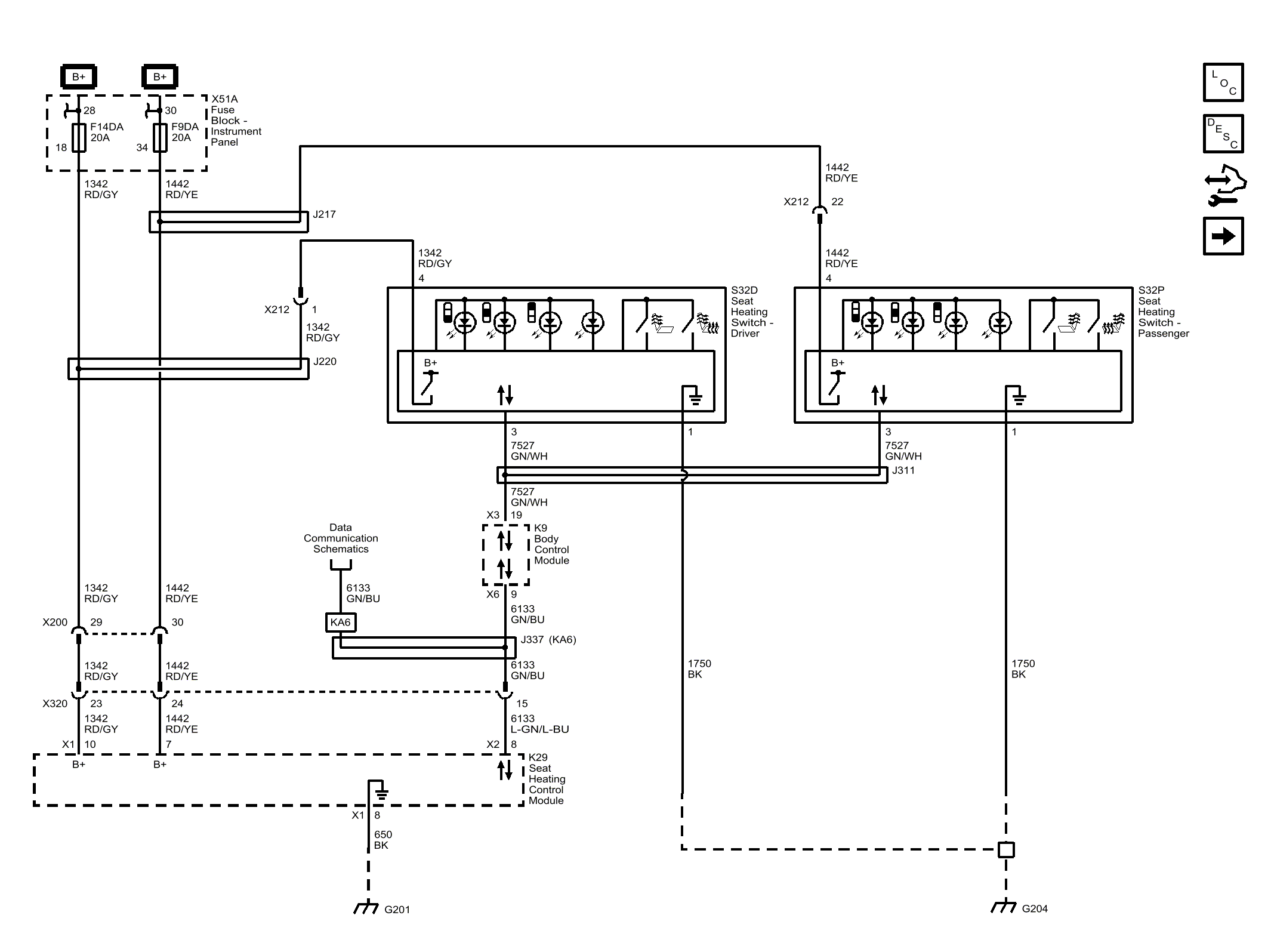

Fig 1: Power, Ground, Serial Data and Switches (KA1)
Courtesy of GENERAL MOTORS COMPANY
