Rear Seat Cushion Heater Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

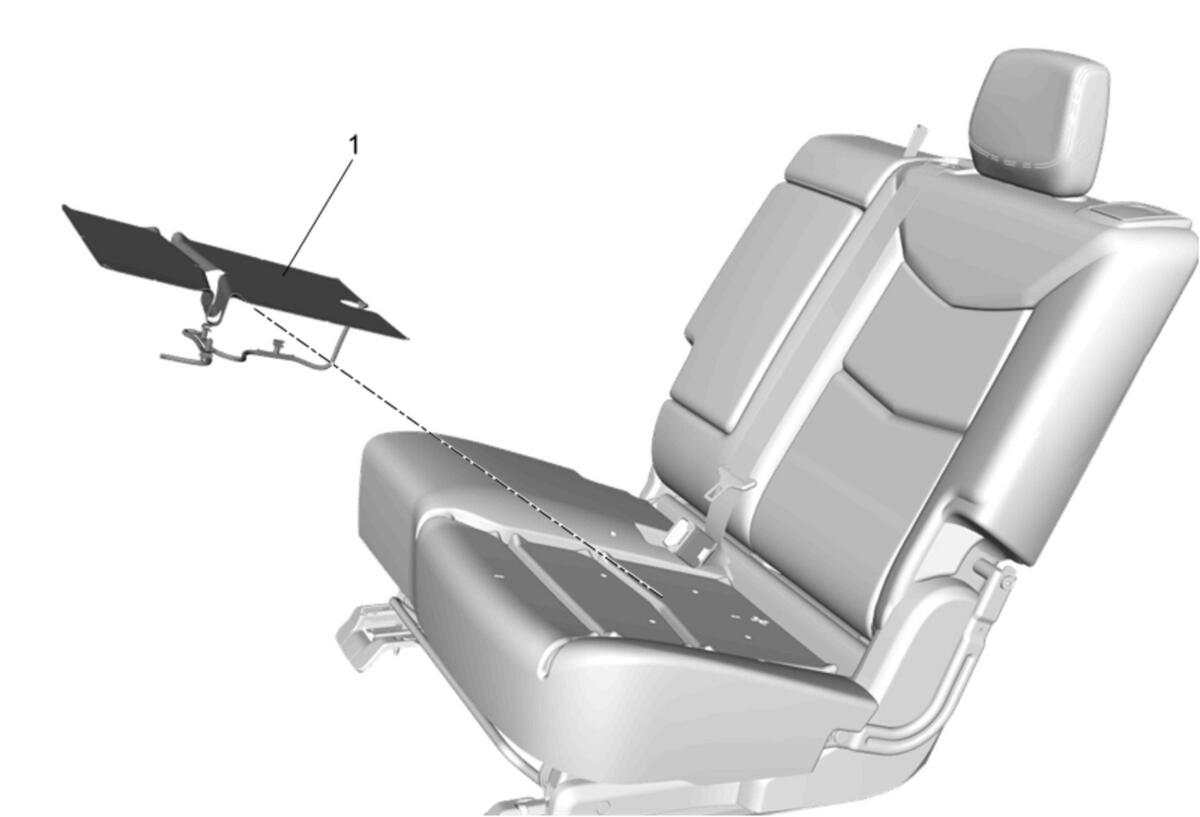

Fig 1: Rear Seat Cushion Heater

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Seat Cushion Cover and Pad Replacement (Bucket)Rear Seat Cushion Cover and Pad Replacement (60%)Rear Seat Cushion Cover and Pad Replacement (40%)
1	Rear Seat Cushion Heater Procedure Disconnect the electrical connector. Note the location and routing of the wiring harness to ensure proper reinstallation.

Callout

Component Name

Preliminary Procedure
Rear Seat Cushion Cover and Pad Replacement (Bucket)Rear Seat Cushion Cover and Pad Replacement (60%)Rear Seat Cushion Cover and Pad Replacement (40%)

Rear Seat Cushion Heater

Procedure

Disconnect the electrical connector.
Note the location and routing of the wiring harness to ensure proper reinstallation.
