Front Seat Vent Fan Mat Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

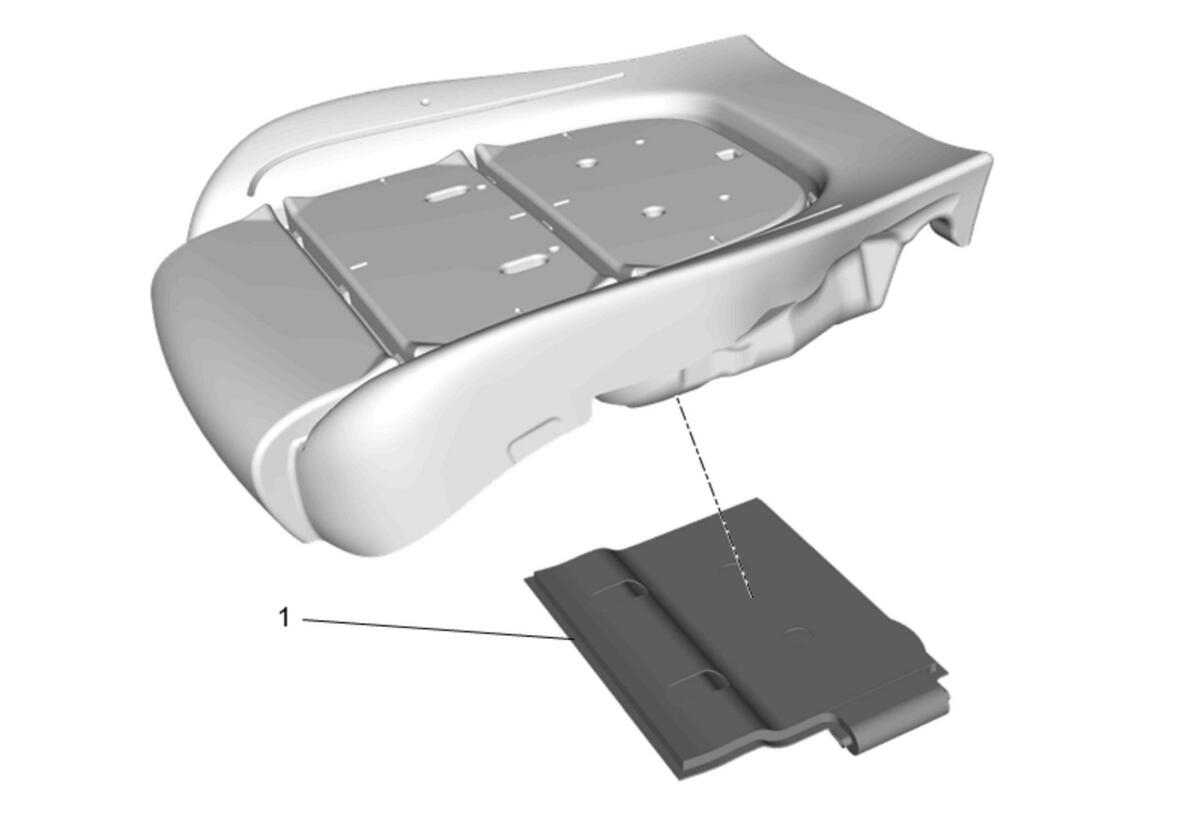

Fig 1: Front Seat Vent Fan Mat

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: To avoid personal injury, perform a preload test on the passenger presence system whenever you remove or replace the seat cushion trim. Failure to do so may cause the system to malfunction. Preliminary Procedure Front Seat Cushion Cover and Pad Replacement
1	Front Seat Vent Fan Mat Procedure Remove the mat leaving the old adhesive strips intact on the seat cushion. The new mat adhesive strips will be placed over the old adhesive strips. If servicing the passenger seat, re-zero the passenger presence system. Passenger Presence System Rezeroing

Callout

Component Name

WARNING:

To avoid personal injury, perform a preload test on the passenger presence system whenever you remove or replace the seat cushion trim. Failure to do so may cause the system to malfunction.

Preliminary Procedure Front Seat Cushion Cover and Pad Replacement

Front Seat Vent Fan Mat

Procedure

Remove the mat leaving the old adhesive strips intact on the seat cushion. The new mat adhesive strips will be placed over the old adhesive strips.
If servicing the passenger seat, re-zero the passenger presence system. Passenger Presence System Rezeroing
