Front Seat Heater Control Module Bracket Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

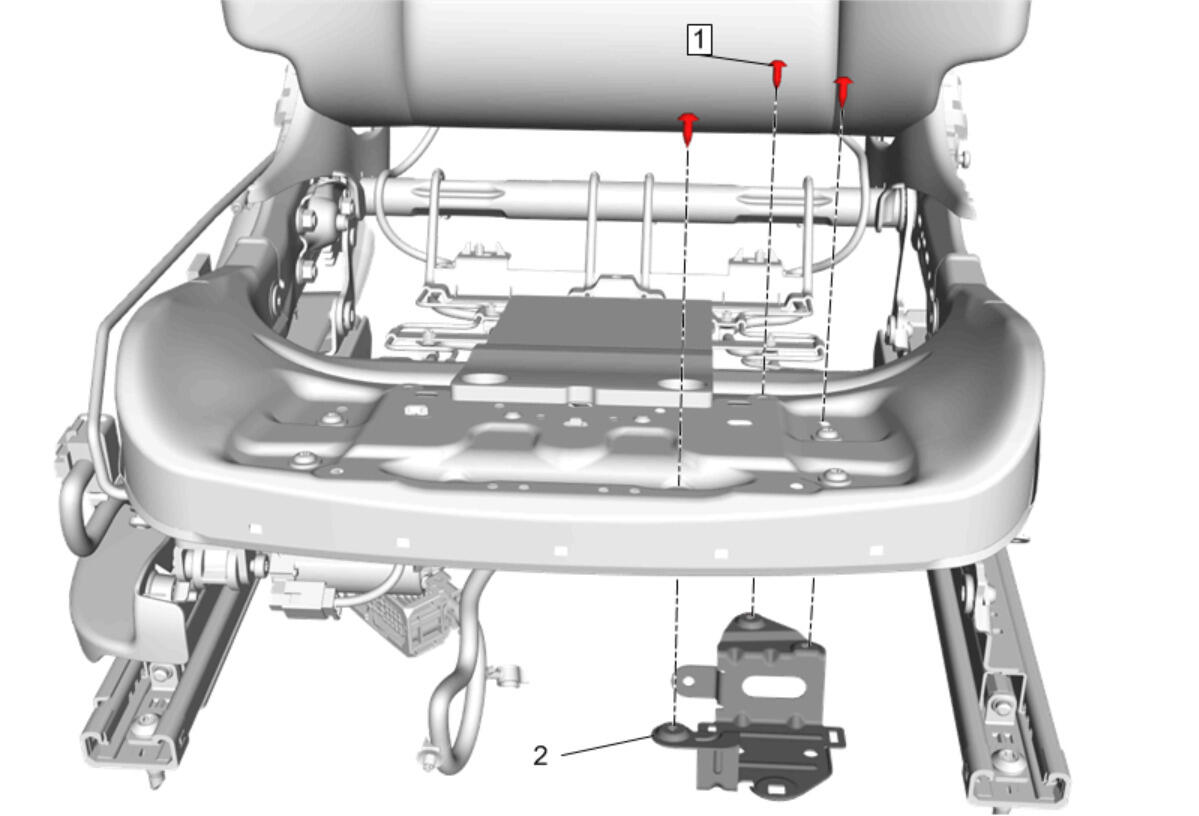

Fig 1: Front Seat Heater Control Module Bracket
GM4353296Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Seat Cushion Cover and Pad Replacement
1 Front Seat Heater Control Module Bracket Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Seat Heater Control Module Bracket

Procedure

  1. Disconnect the electrical connectors.
  2. Unclip the wiring harness.
  3. Transfer components as necessary.
