Front Seat Cushion Ventilation Blower Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

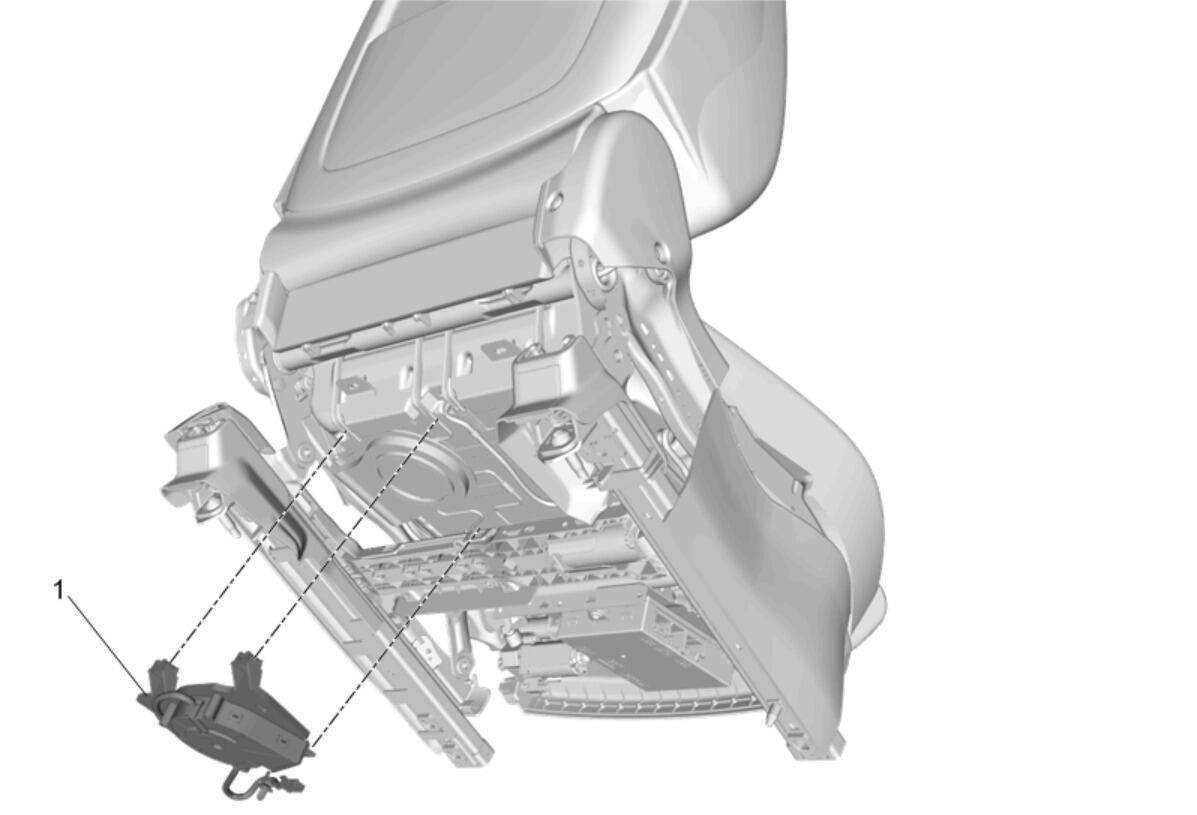

Fig 1: Front Seat Cushion Ventilation Blower

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Driver or Passenger Seat Removal and Installation
1	Front Seat Cushion Ventilation Blower Procedure Disconnect and reposition harness as necessary. Release the retainers to separate the blower from the front seat vent fan mat.

Callout

Component Name

Preliminary Procedure
Driver or Passenger Seat Removal and Installation

Front Seat Cushion Ventilation Blower

Procedure

Disconnect and reposition harness as necessary.
Release the retainers to separate the blower from the front seat vent fan mat.
