Front Seat Cushion Heater Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

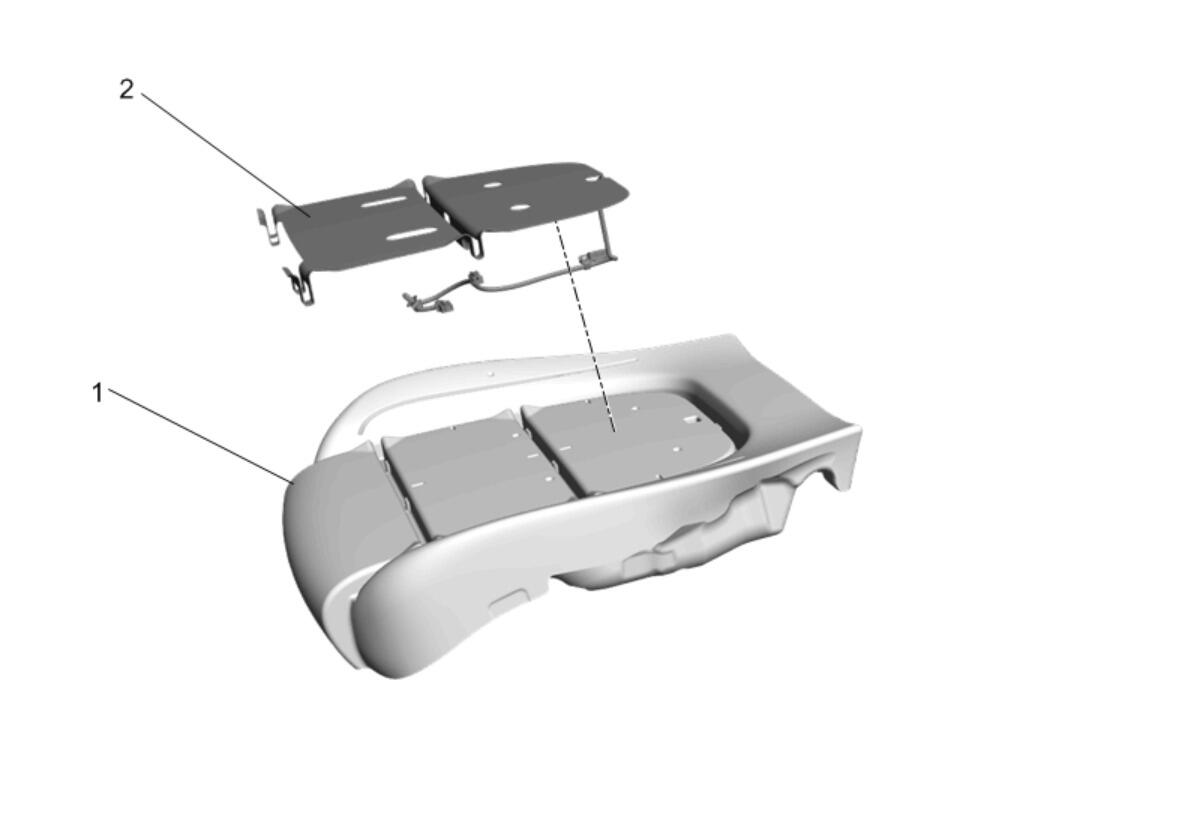

Fig 1: Front Seat Cushion Heater

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Seat Cushion Cover and Pad Replacement
1	Front Seat Cushion Pad
2	Front Seat Cushion Heater Procedure Note the routing of the wiring harness and connector location for installation. Remove the heater element leaving the old adhesive strips intact on the seat cushion. The new seat heater adhesive strips will be placed over the old adhesive strips. NOTE: Apply low heat with a heat gun to soften the adhesive before removal.

Callout

Component Name

Preliminary Procedure
Front Seat Cushion Cover and Pad Replacement

Front Seat Cushion Pad

Front Seat Cushion Heater

Procedure

Note the routing of the wiring harness and connector location for installation.
Remove the heater element leaving the old adhesive strips intact on the seat cushion. The new seat heater adhesive strips will be placed over the old adhesive strips.

NOTE:

Apply low heat with a heat gun to soften the adhesive before removal.
