Front Seat Back Ventilation Blower Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

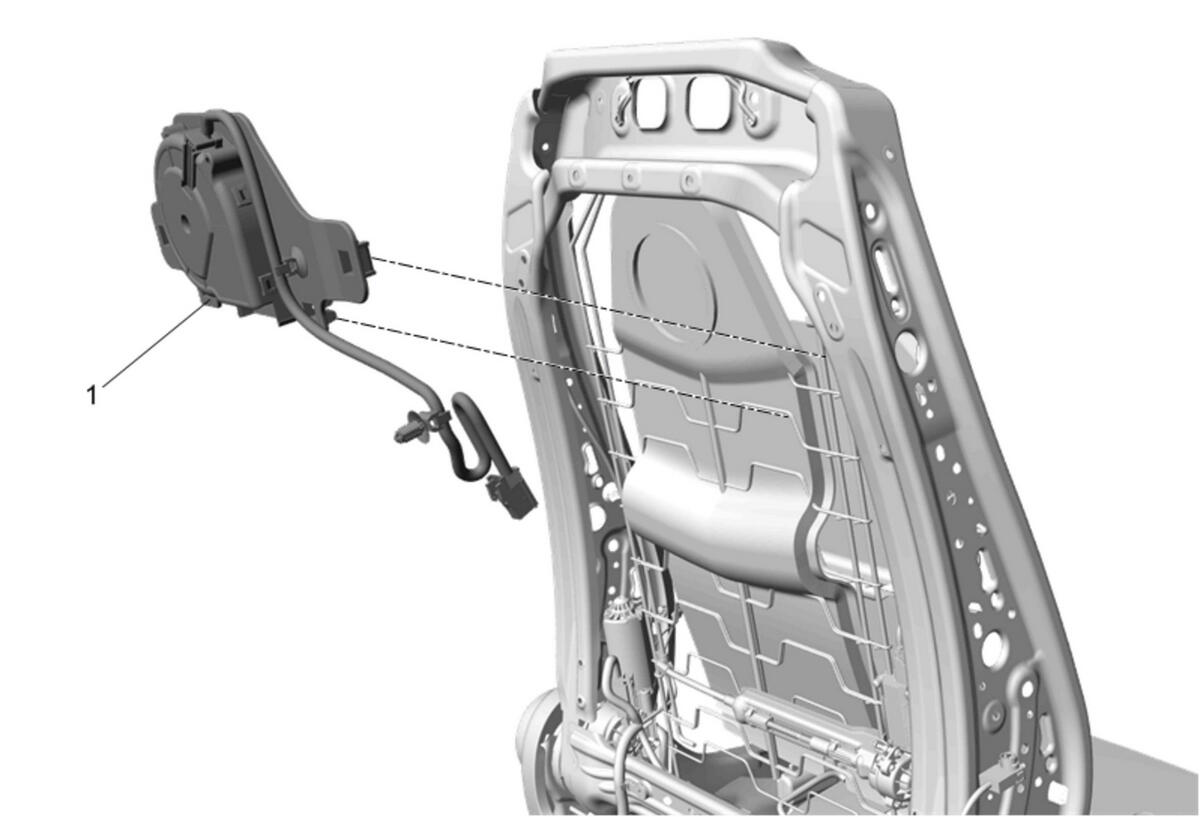

Fig 1: Front Seat Back Ventilation Blower

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Driver or Passenger Seat Back Cover and Pad Replacement
1	Front Seat Back Ventilation Blower Procedure Disconnect the electrical connector. Release the retainers to separate the blower from the front seat.

Callout

Component Name

Preliminary Procedure
Driver or Passenger Seat Back Cover and Pad Replacement

Front Seat Back Ventilation Blower

Procedure

Disconnect the electrical connector.
Release the retainers to separate the blower from the front seat.
