Driver or Passenger Seat Heater Switch Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

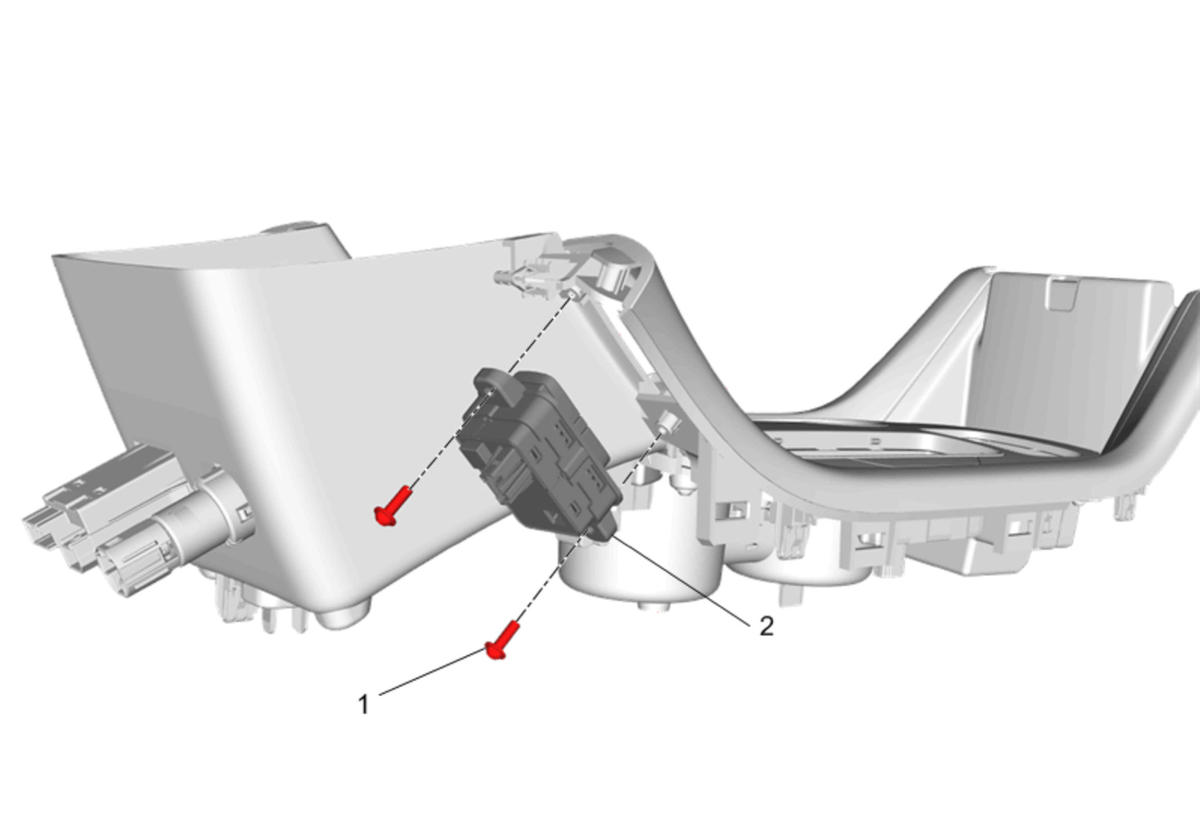

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Trim Plate Replacement |
|
| 1 | Front Seat Heater Switch Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 1 N.m (9 lb in) |
| 2 | Front Seat Heater Switch Procedure Use a suitable tool to release the switch from the switch plate. |
