Outside Rearview Mirror Housing Bezel Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

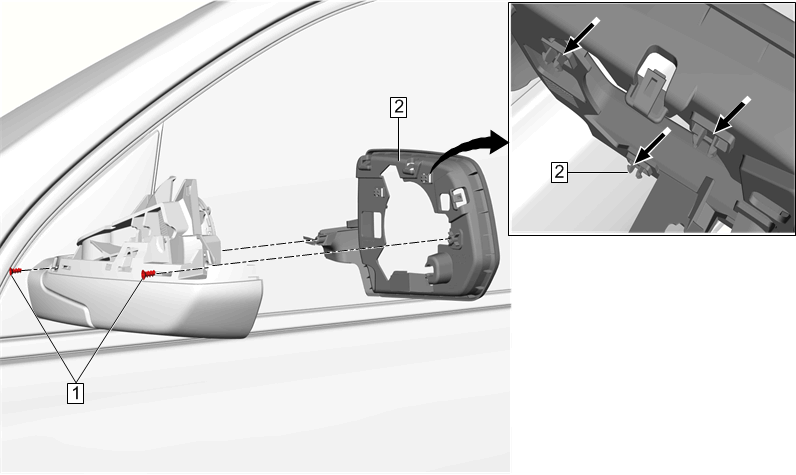

| Callout | Component Name |
|---|---|
| Preliminary Procedure Outside Rearview Mirror Housing Upper Cover Replacement |
|
| 1 | Outside Rearview Mirror Housing Bezel Applique Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 0.8 N.m (7 lb in) |
| 2 | Outside Rearview Mirror Housing Bezel Procedure Release the retaining tabs. |
