Headlamps and Daytime Running Lamps (T4A)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

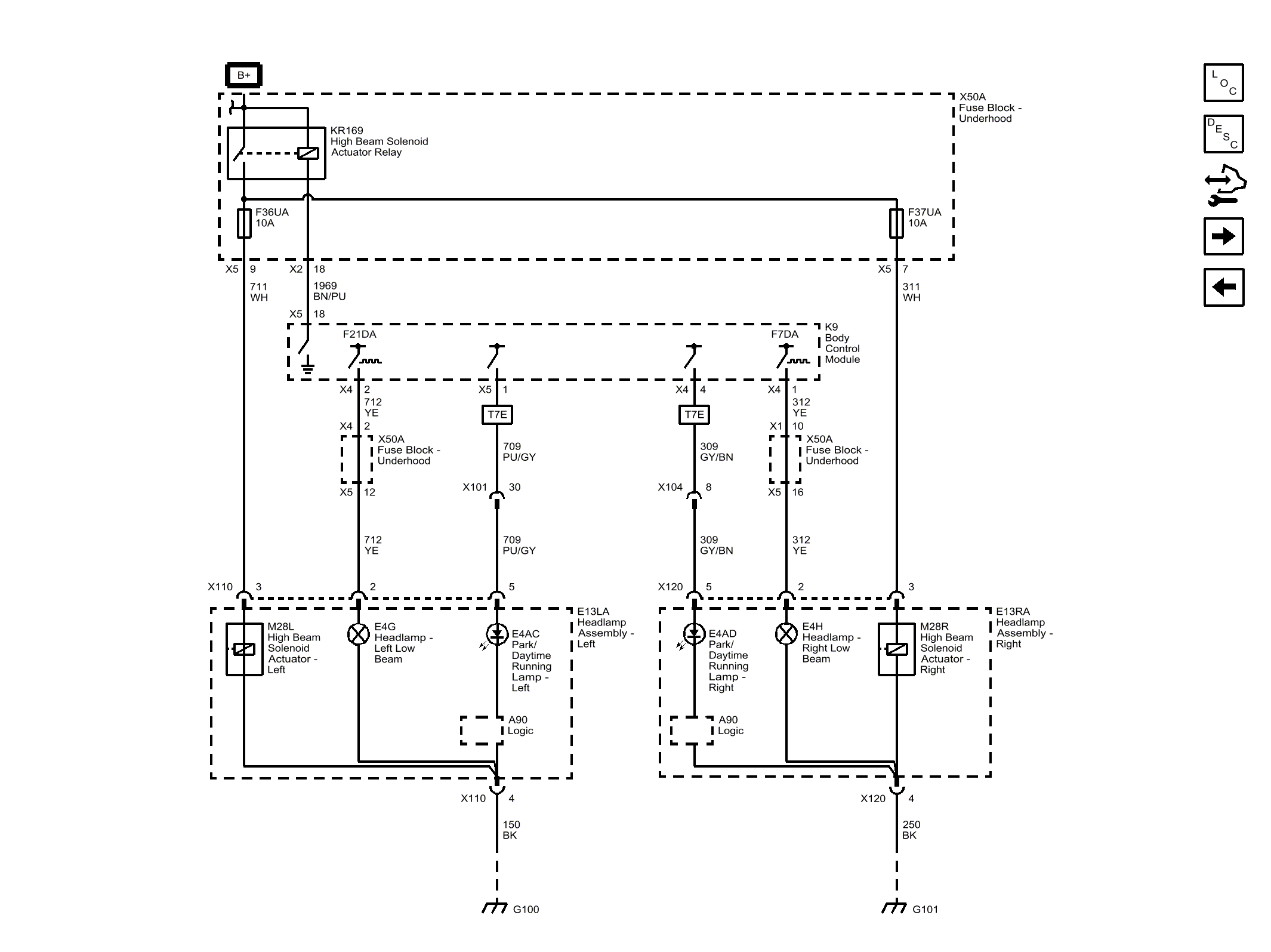

Fig 1: Headlamps and Daytime Running Lamps (T4A)
GM4372918Courtesy of GENERAL MOTORS COMPANY
