Rear Park Lamps

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

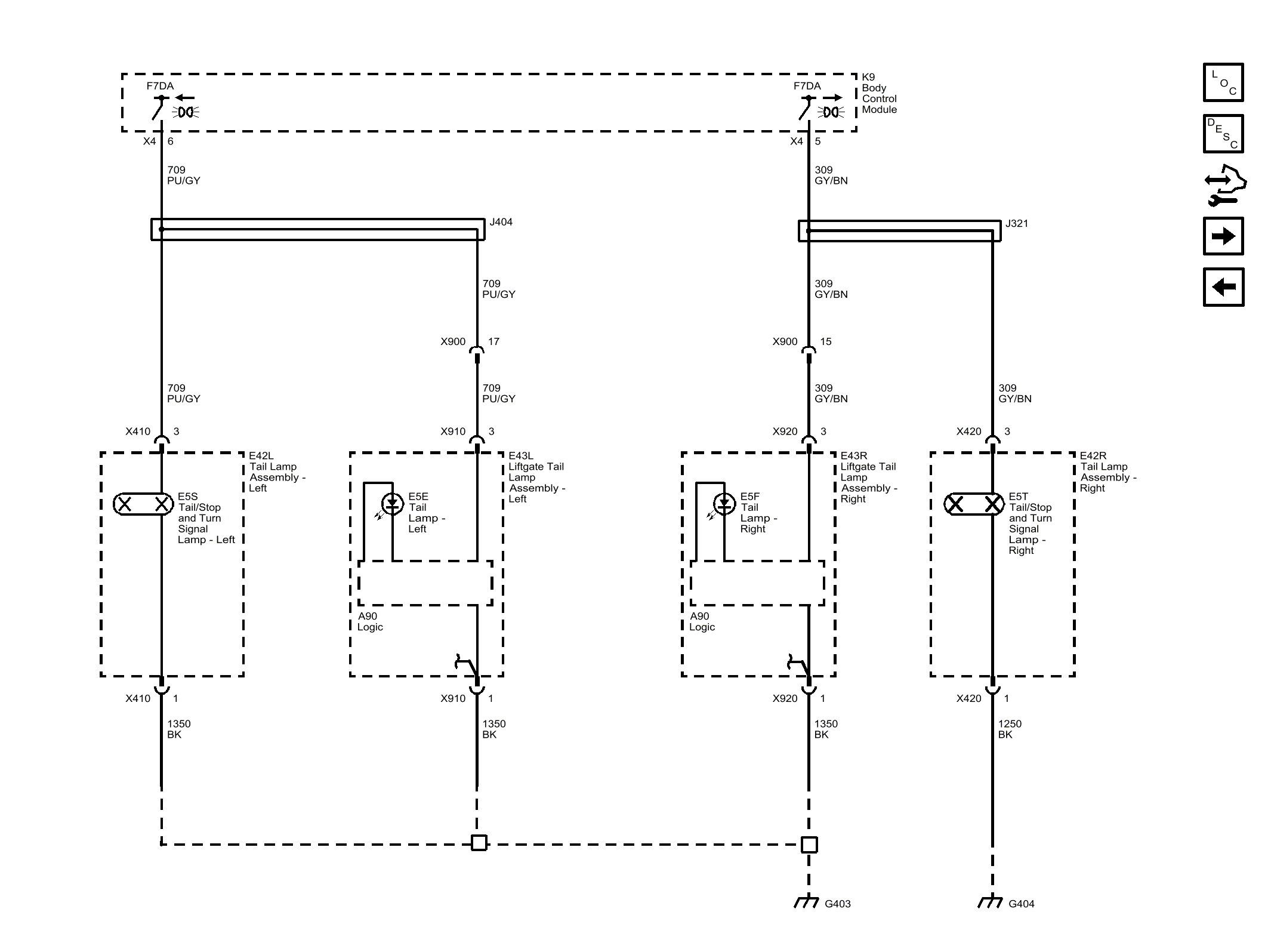

Fig 1: Rear Park Lamps
GM4372934Courtesy of GENERAL MOTORS COMPANY
