Backup and License Lamps

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

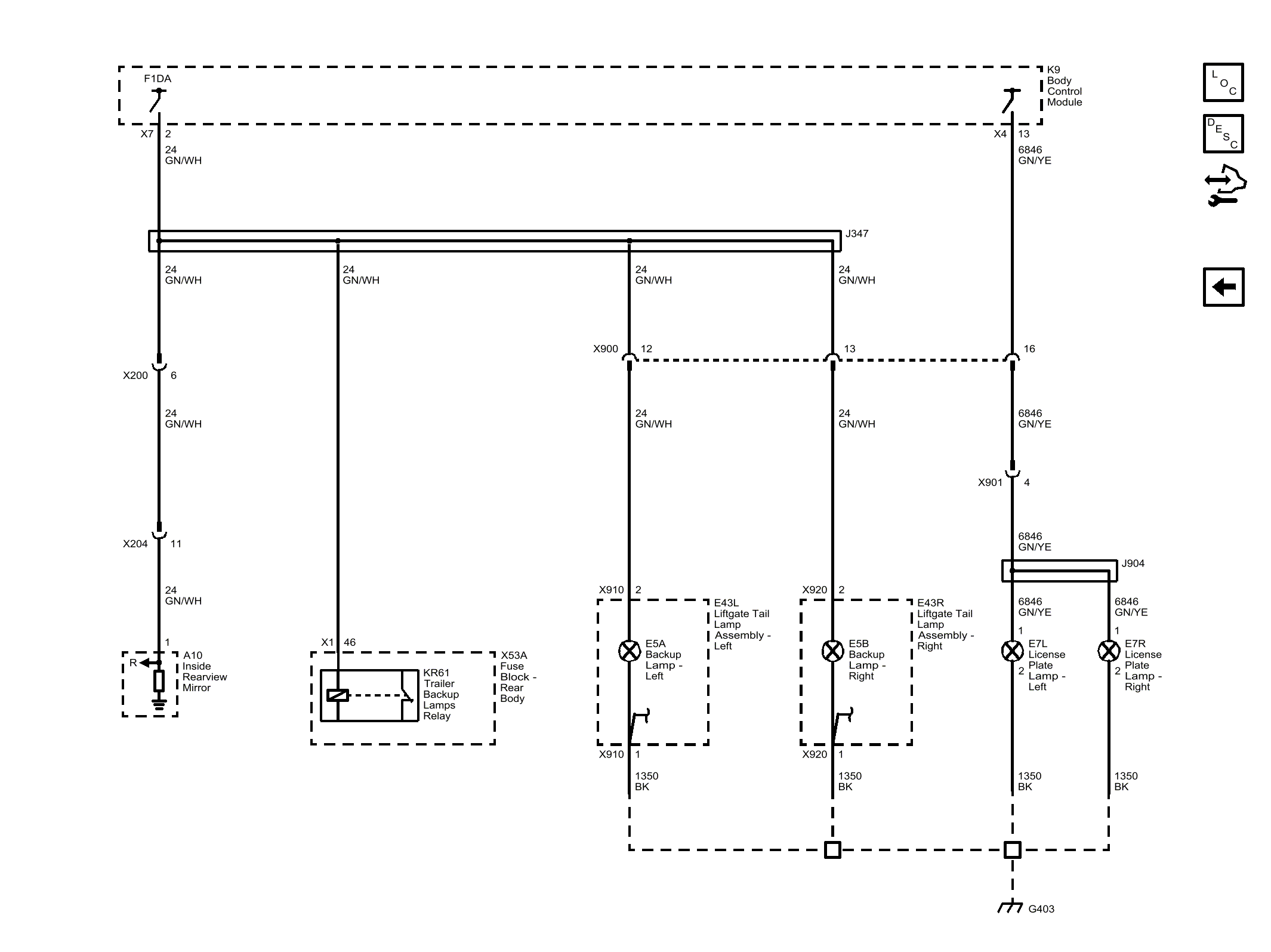

Fig 1: Backup and License Lamps
GM4372935Courtesy of GENERAL MOTORS COMPANY
