Rear Side Door Inside Handle Illumination Lamp Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

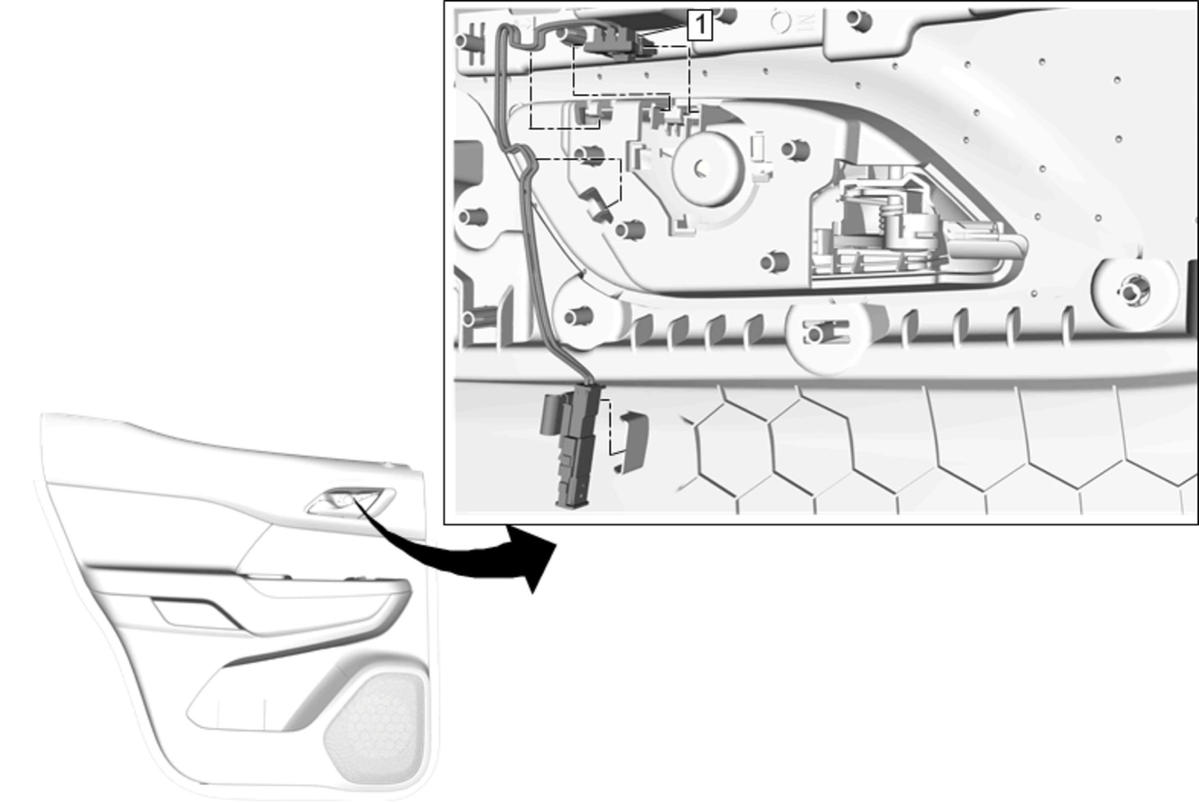

Fig 1: Rear Side Door Inside Handle Illumination Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Side Door Trim Replacement
1	Rear Side Door Inside Handle Illumination Lamp Procedure Note the location and routing of the lamp prior to removal to ensure proper installation. Disconnect the electrical connector. Reposition the rear side door trim insulator panel, if needed. Unsnap lamp from trim panel tabs.

Callout

Component Name

Preliminary Procedure
Rear Side Door Trim Replacement

Rear Side Door Inside Handle Illumination Lamp

Procedure

Note the location and routing of the lamp prior to removal to ensure proper installation.
Disconnect the electrical connector.
Reposition the rear side door trim insulator panel, if needed.
Unsnap lamp from trim panel tabs.
