Rear Seat Position Center Reading and Courtesy Lamp Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |

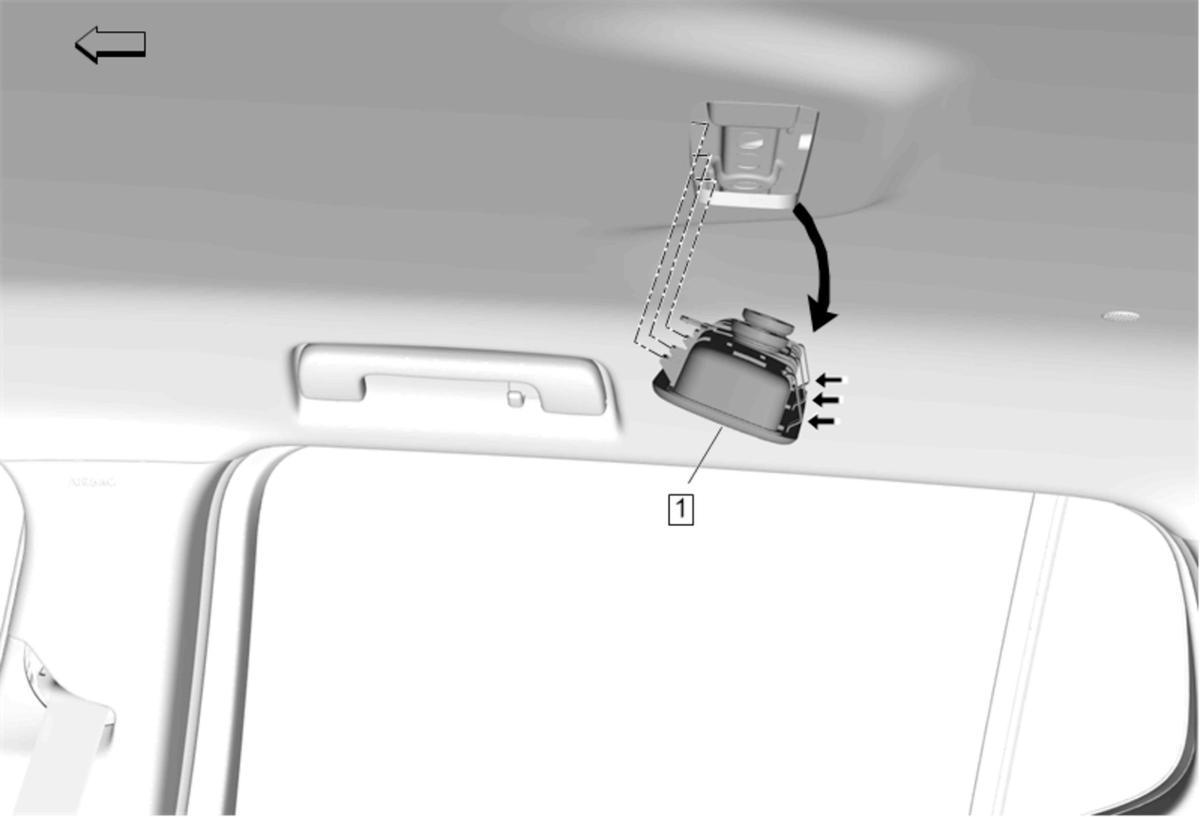

Rear Seat Position Center Reading and Courtesy Lamp Procedure
- Grasp the lamp and pull downward to release the retainer clips and magnets securing the lamp to the headliner.
- Disconnect the electrical connector.
|
