Rear License Plate Lamp Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

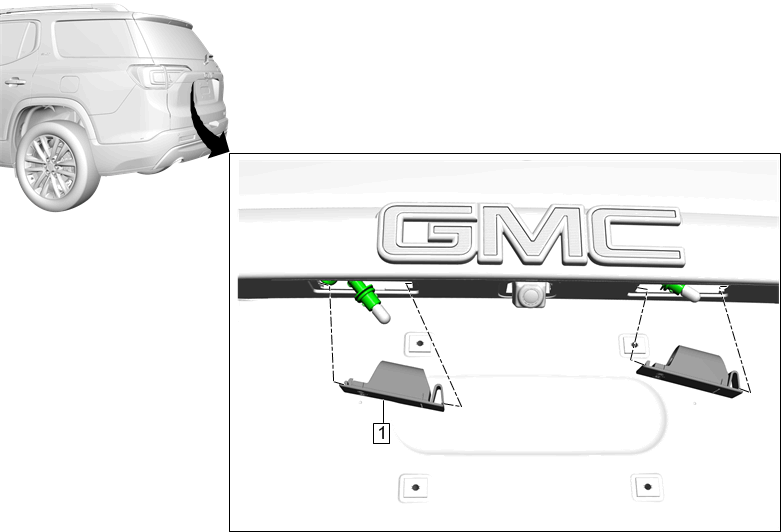

| Callout |
Component Name |
| 1 |
Rear License Plate Lamp Procedure
- Using the appropriate tool, compress the left end of the rear license plate lamp and release the rear license plate lamp from the liftgate.
- Disconnect the electrical connector.
- Transfer components as necessary.
|
