Rear Fascia Lower Signal Lamp Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

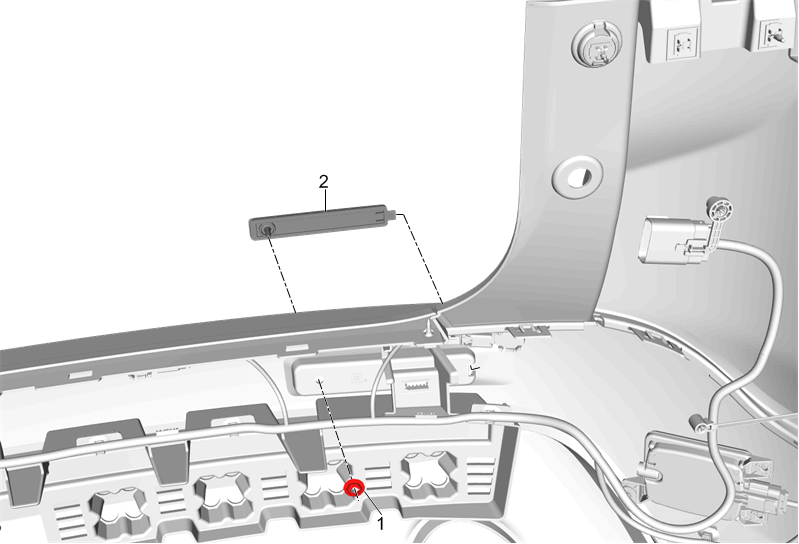

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Bumper Fascia Replacement |
|
| 1 | Rear Bumper Fascia Nut Procedure Remove the nut from the stud.
NOTE:
Install a NEW nut. Do NOT reuse the old nut. |
| 2 | Rear Fascia Lower Signal Lamp Procedure Release the retaining tab. |
