Rear Closure Auxiliary Signal Lamp Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

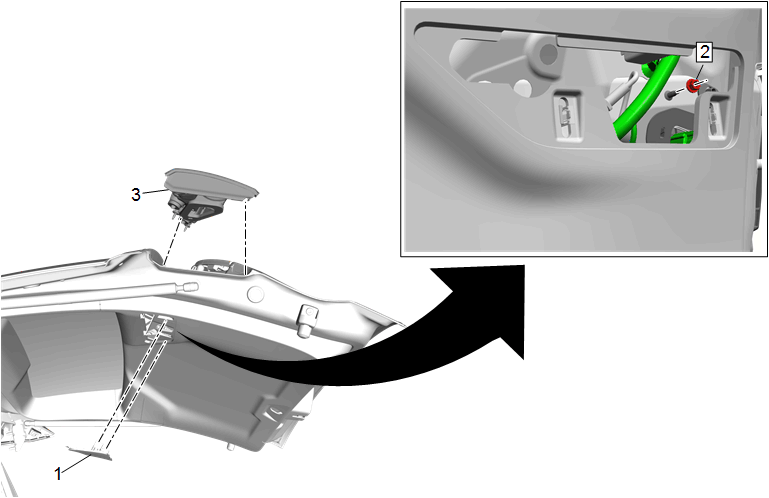

Fig 1: Rear Closure Auxiliary Signal Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the liftgate.
1	Rear Closure Auxilliary Signal Lamp Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4.7 N.m (42 lb in)
2	Rear Closure Auxilliary Signal Lamp Procedure Disconnect the electrical connector. Pull straight back from body side outer frame. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Open the liftgate.

Rear Closure Auxilliary Signal Lamp Nut (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
4.7 N.m (42 lb in)

Rear Closure Auxilliary Signal Lamp

Procedure

Disconnect the electrical connector.
Pull straight back from body side outer frame.
Transfer components as necessary.
