Headlamp Bulb Replacement - Left Side (T4A)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

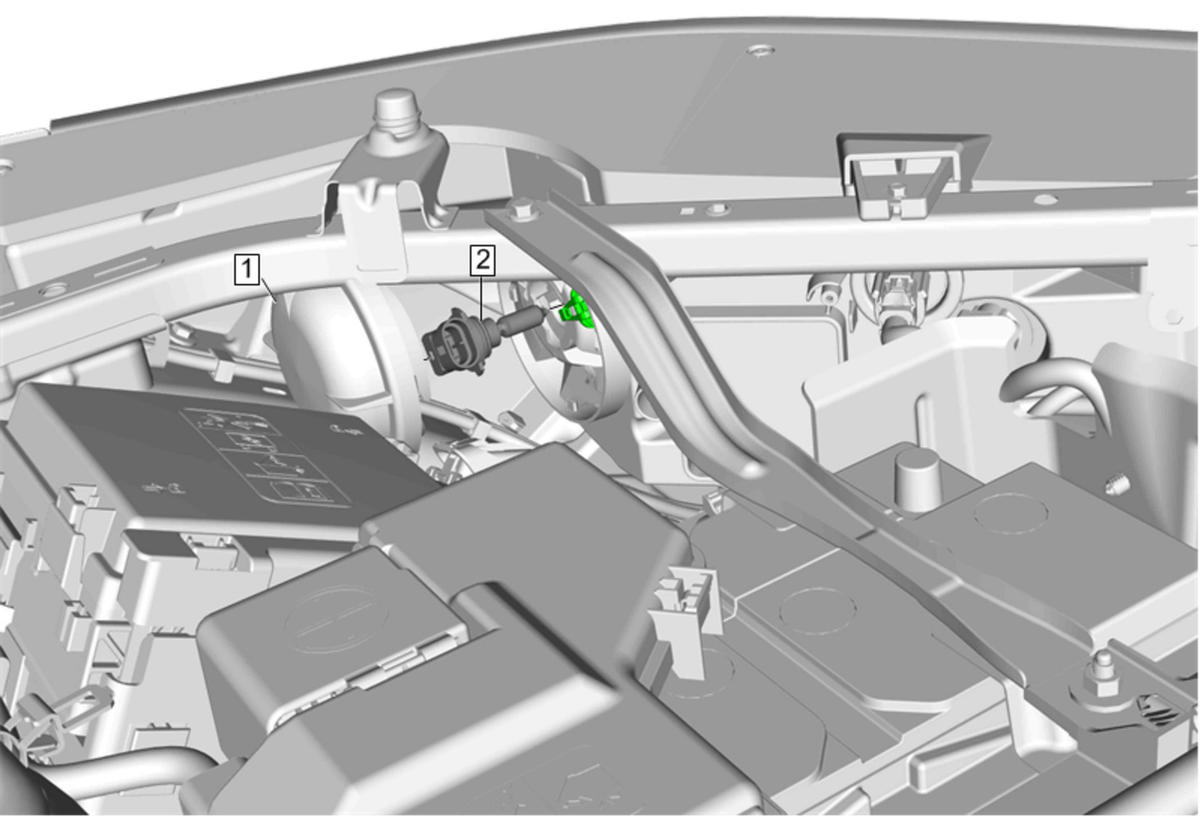

Fig 1: Headlamp Bulb - Left Side (T4A)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Headlamp Bulb Access Cover Procedure Rotate the headlamp bulb access cover counterclockwise and pull from the headlamp.
2	Headlamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector. Rotate the bulb socket counterclockwise to remove it from the lamp housing.

Callout

Component Name

Headlamp Bulb Access Cover
Procedure
Rotate the headlamp bulb access cover counterclockwise and pull from the headlamp.

Headlamp Bulb

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Disconnect the electrical connector.
Rotate the bulb socket counterclockwise to remove it from the lamp housing.
