Liftgate Actuation and Rear Controls

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

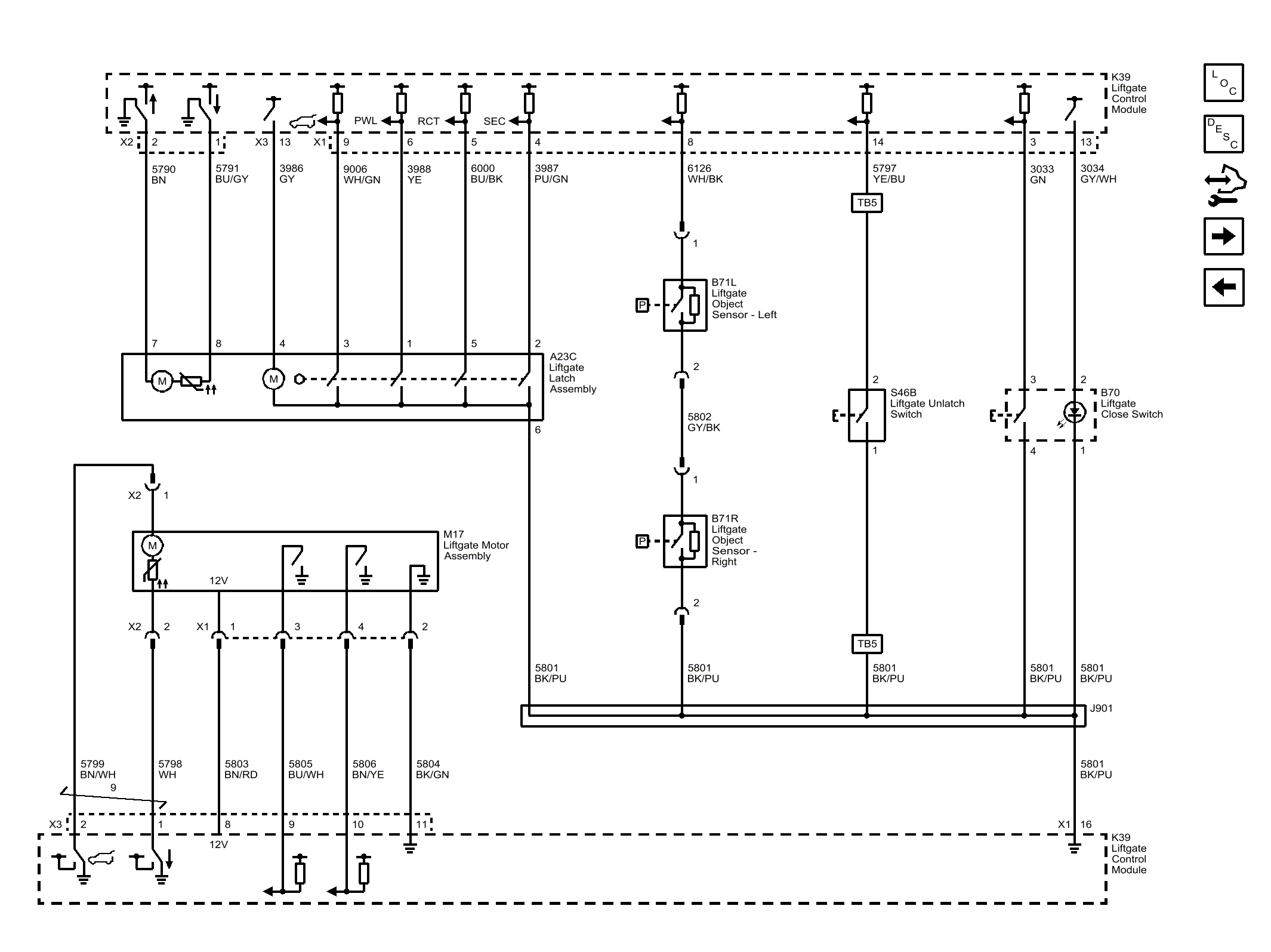

Fig 1: Liftgate Actuation and Rear Controls
GM4372991Courtesy of GENERAL MOTORS COMPANY
