Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Lock Cylinder Insulator And Cover

Courtesy of GENERAL MOTORS COMPANY

Install the rear side door lock cylinder opening cover (1) to the lock cylinder insulator (2).

Fig 2: Rear Side Door Outside Handle

Courtesy of GENERAL MOTORS COMPANY

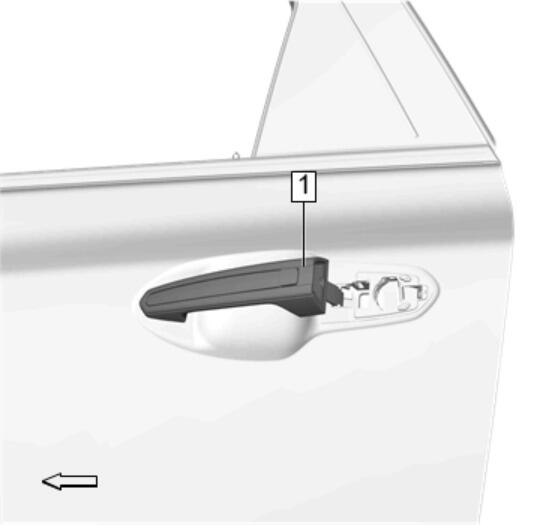

Pull the rear side door handle (1) out to the open position.

Fig 3: Rear Side Door Lock Cylinder Opening Cover

Courtesy of GENERAL MOTORS COMPANY

Install Rear Side Door Lock Cylinder Opening Cover (1)

Fig 4: Rear Side Door Outside Handle

Courtesy of GENERAL MOTORS COMPANY

Place the rear side door outside handle (1) in the closed position.

Fig 5: Rear Side Door Access Hole Cover And Outside Handle Lock Cylinder Screw

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install and tighten Rear Side Door Outside Handle Lock Cylinder Screw (2) to 4 N.m (31 lb in)
Install Rear Side Door Access Hole Cover (1)
