Rear Closure Hands Free Sensor Replacement (Lower)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

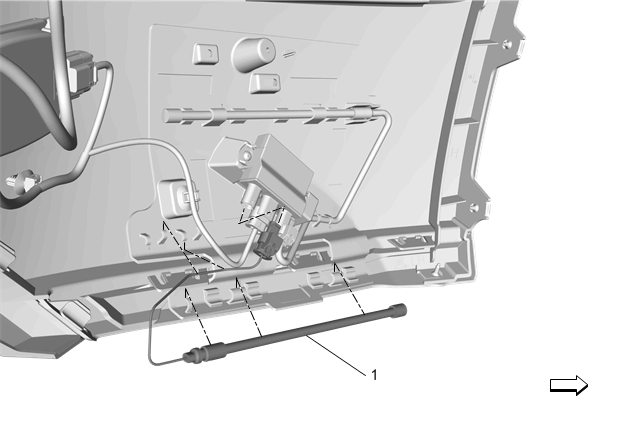

Fig 1: Rear Closure Hands Free Sensor (Lower)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Closure Hands Free Sensor Shield. Refer to Rear Closure Hands Free Sensor Shield Replacement
1	Rear Closure Hands Free Sensor Procedure Disconnect the electrical connector. Disengage the wire at the connector, disengage opposite end, then pull back on each tab, and apply slight force on sensor to push the sensor out of the tabs.

Callout

Component Name

Preliminary Procedure
Remove Rear Closure Hands Free Sensor Shield. Refer to Rear Closure Hands Free Sensor Shield Replacement

Rear Closure Hands Free Sensor

Procedure

Disconnect the electrical connector.
Disengage the wire at the connector, disengage opposite end, then pull back on each tab, and apply slight force on sensor to push the sensor out of the tabs.
