Liftgate Latch Striker Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

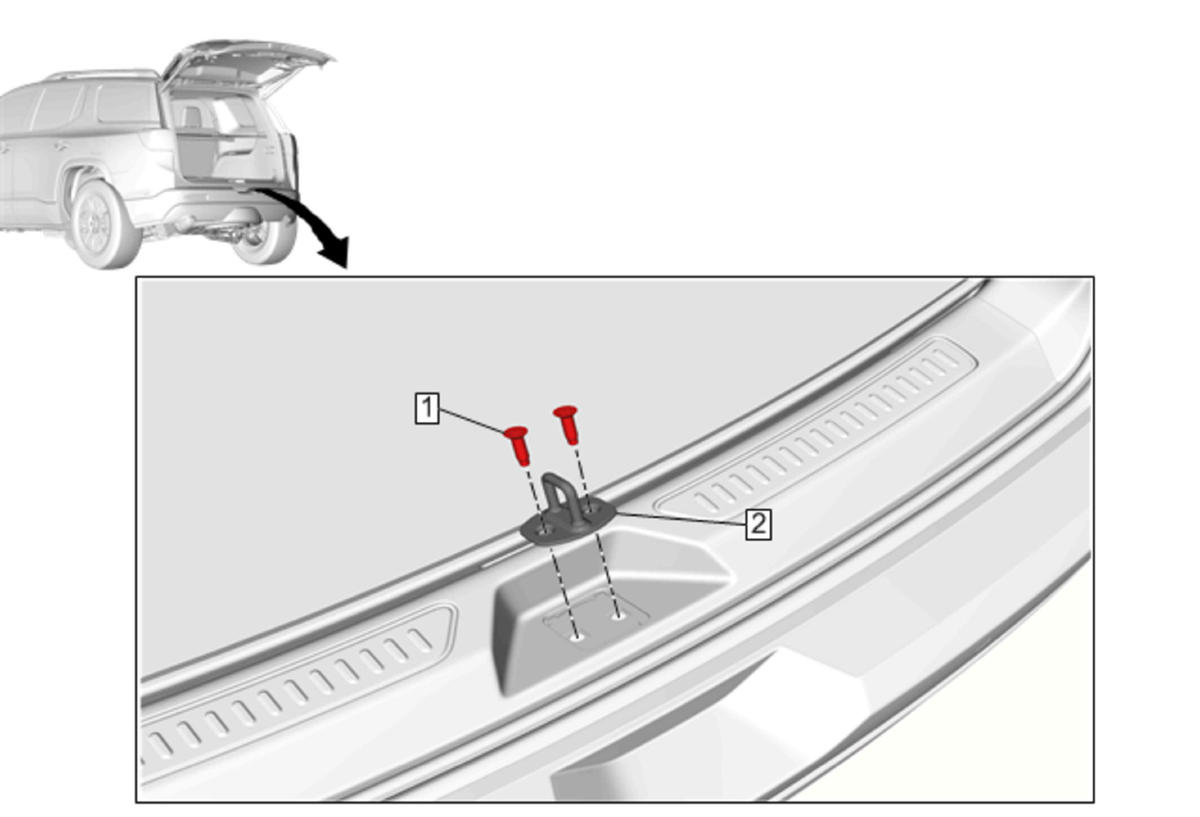

Fig 1: Liftgate Latch Striker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Liftgate Lock Striker Cover. Refer to Liftgate Lock Striker Cover Replacement
1	Liftgate Latch Striker Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Liftgate Latch Striker Procedure Mark the location of the striker with a grease pencil to ensure proper alignment during installation. Adjust Liftgate, if needed. Refer to Liftgate Adjustment

Callout

Component Name

Preliminary Procedure
Remove Liftgate Lock Striker Cover. Refer to Liftgate Lock Striker Cover Replacement

Liftgate Latch Striker Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Liftgate Latch Striker

Procedure

Mark the location of the striker with a grease pencil to ensure proper alignment during installation.
Adjust Liftgate, if needed. Refer to Liftgate Adjustment
