Fuel Tank Filler Door Lock Actuator Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

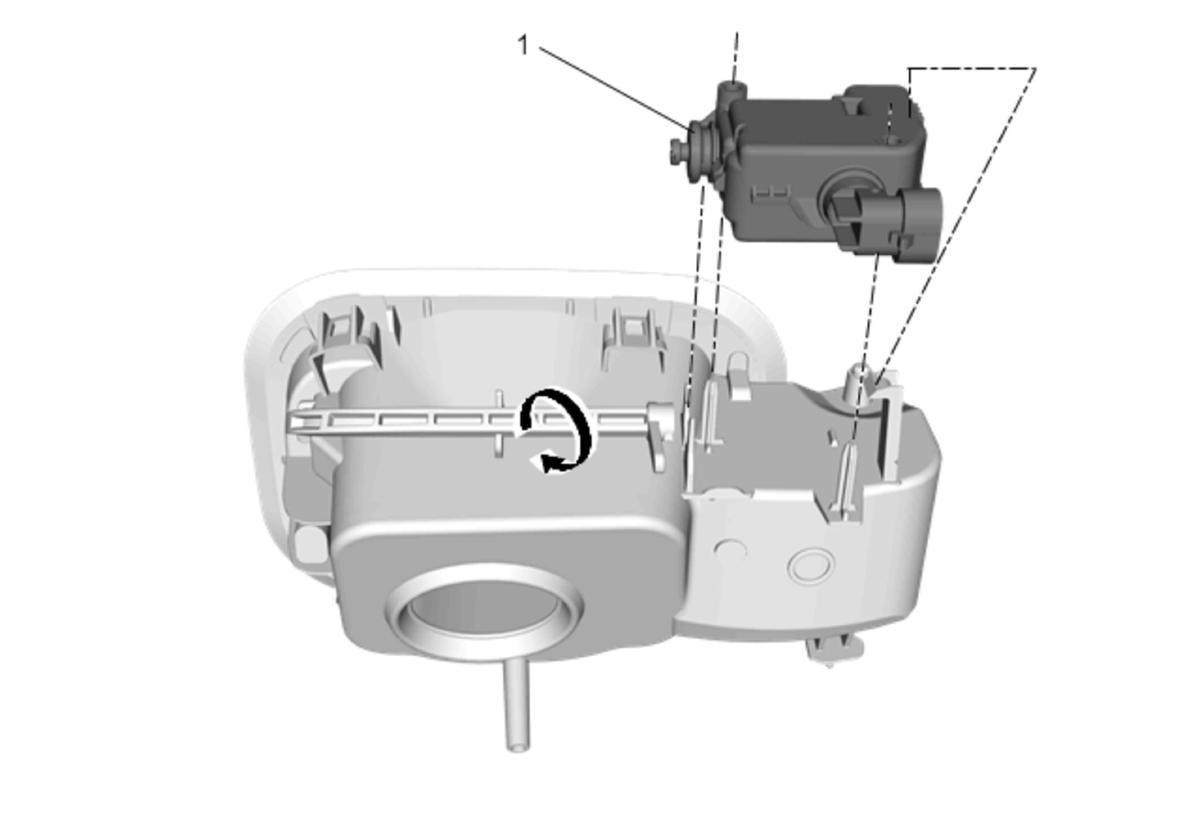

Fig 1: Fuel Tank Filler Door Lock Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Fuel Tank Filler Pipe Housing. Refer to Fuel Tank Filler Pipe Housing Replacement .
1	Fuel Tank Filler Door Lock Actuator Procedure Disconnect the electrical connector. Remove the actuator rod from the actuator shaft, with light pressure, pressing sideways on the rod at the shafts end, and rotating the rod outward from the housing. Release the retainers while using light outward pressure on the actuator.

Callout

Component Name

Preliminary Procedure
Remove Fuel Tank Filler Pipe Housing. Refer to Fuel Tank Filler Pipe Housing Replacement .

Fuel Tank Filler Door Lock Actuator

Procedure

Disconnect the electrical connector.
Remove the actuator rod from the actuator shaft, with light pressure, pressing sideways on the rod at the shafts end, and rotating the rod outward from the housing.
Release the retainers while using light outward pressure on the actuator.
