Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

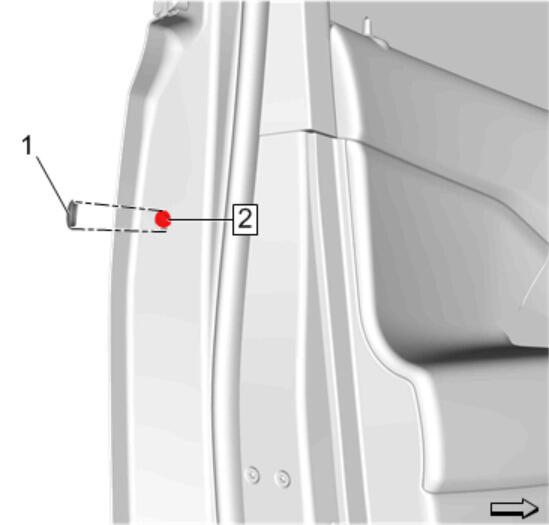

Fig 1: Front Side Door Access Hole Cover And Outside Handle Lock Cylinder Screw

Courtesy of GENERAL MOTORS COMPANY

Remove Front Side Door Access Hole Cover (1)

NOTE:

USE HAND TOOL ONLY. Using a battery operated gun or power tool can BREAK the component.
Around 10-12 rotations is enough to allow the Front Side Door Outside Handle Lock Cylinder to be removed.

Loosen Front Side Door Outside Handle Lock Cylinder Screw (2)

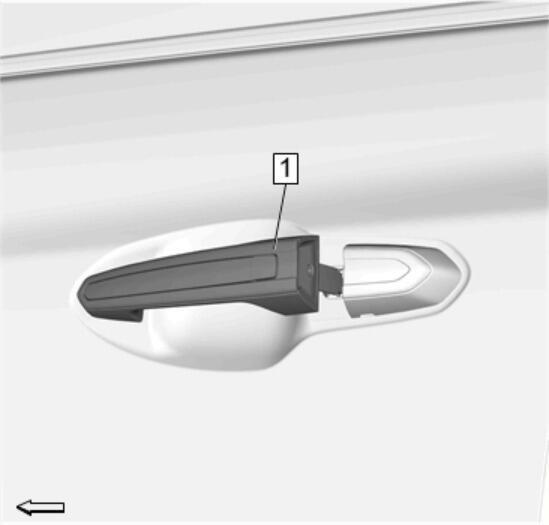

Fig 2: Front Side Door Outside Handle

Courtesy of GENERAL MOTORS COMPANY

Pull the door handle (1) out to the open position.

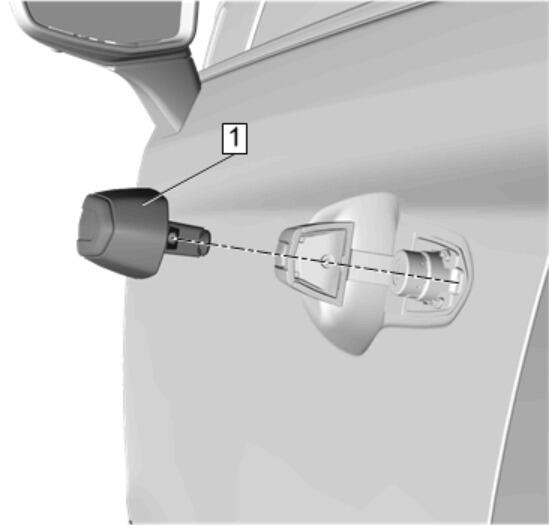

Fig 3: Front Side Door Lock Cylinder Bezel

Courtesy of GENERAL MOTORS COMPANY

Remove Front Side Door Lock Cylinder Bezel (1)

Fig 4: Lock Cylinder Insulator And Cover

Courtesy of GENERAL MOTORS COMPANY

Using the appropriate tool, remove the front side door lock cylinder opening cover (1) from the lock cylinder insulator (2).
