Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Lock Cylinder Insulator And Cover

Courtesy of GENERAL MOTORS COMPANY

Install the front side door lock cylinder opening cover (1) to the lock cylinder insulator (2).

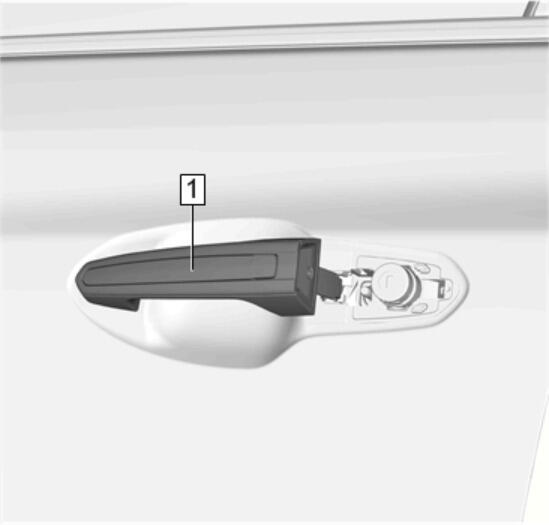

Fig 2: Front Side Door Outside Handle

Courtesy of GENERAL MOTORS COMPANY

Pull the door handle (1) out to the open position.

Fig 3: Front Side Door Lock Cylinder Bezel

Courtesy of GENERAL MOTORS COMPANY

Install Front Side Door Lock Cylinder Bezel (1)

Fig 4: Front Side Door Outside Handle

Courtesy of GENERAL MOTORS COMPANY

Place the front side door outside handle (1) in the closed position.

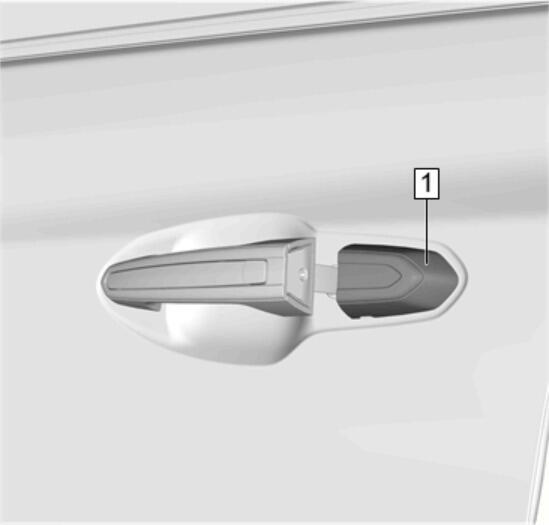

Fig 5: Front Side Door Access Hole Cover And Outside Handle Lock Cylinder Screw

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Tighten Front Side Door Outside Handle Lock Cylinder Screw (2) to 4 N.m (31 lb in)
Install Front Side Door Lock Cylinder Opening Cover (1)
