Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

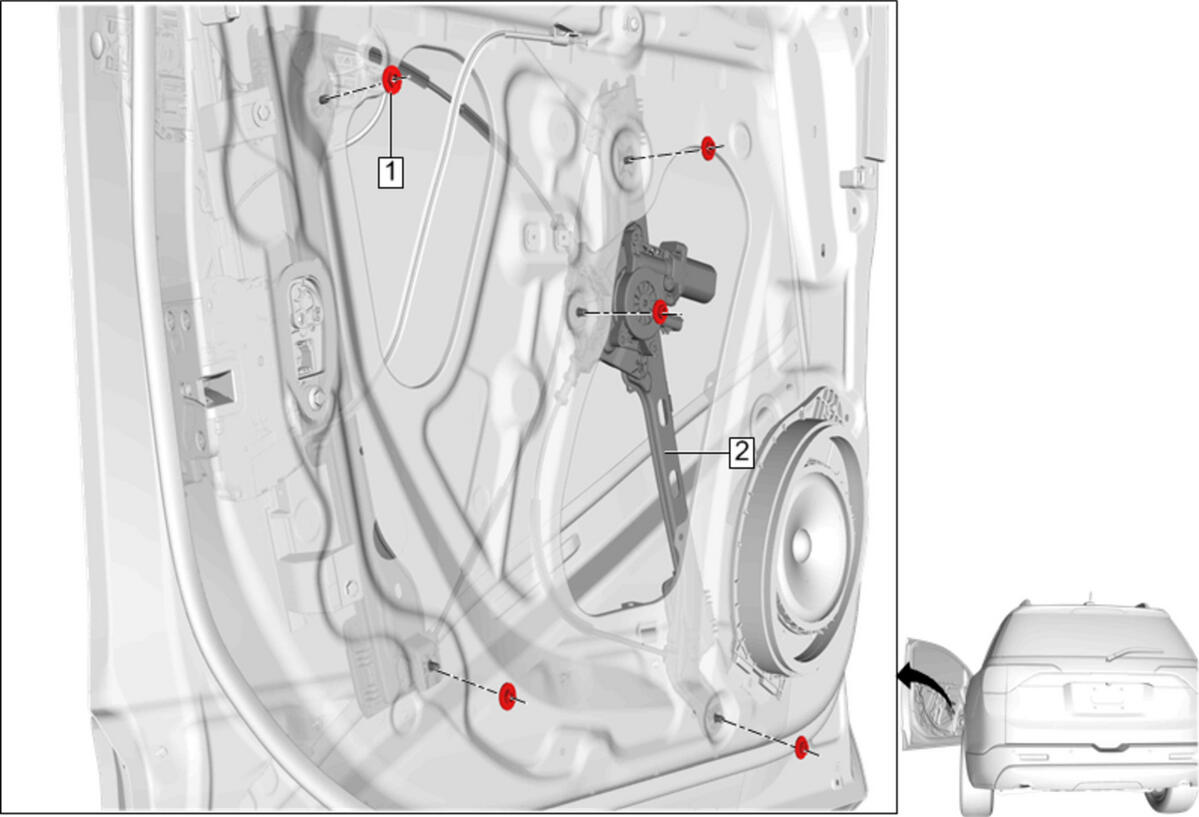

    Fig 1: Front Side Door Window Regulator And Fasteners
    GM4375240Courtesy of GENERAL MOTORS COMPANY
  1. Remove Front Side Door Window Regulator (2). Refer to Front Side Door Window Regulator Replacement

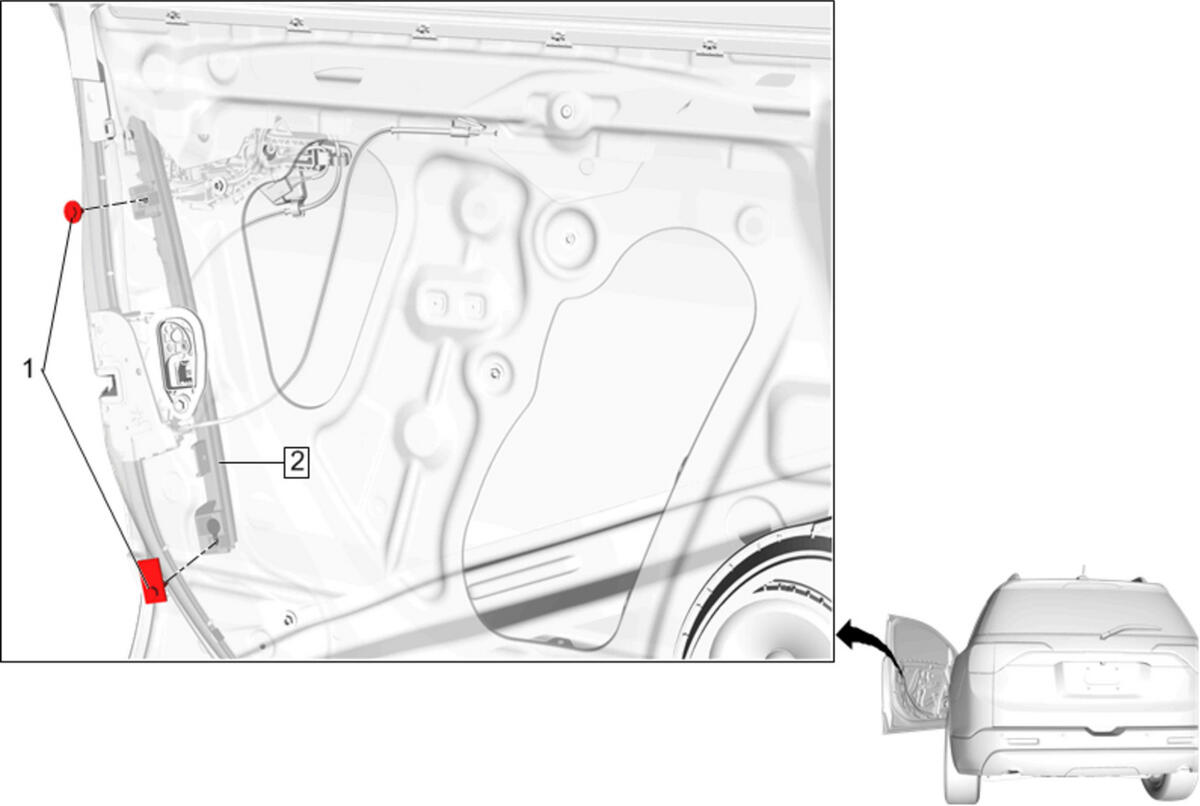

    2. Fig 2: Front Side Door Window Channel Retainer And Fasteners
    GM4375241Courtesy of GENERAL MOTORS COMPANY
  2. Remove Front Side Door Window Channel Retainer (2). Refer to Front Side Door Window Channel Retainer Replacement
    3. Fig 3: Front Side Door Outside Handle Bracket
    GM4138304Courtesy of GENERAL MOTORS COMPANY
  3. Remove Front Side Door Outside Handle Bracket (1). Refer to Front Side Door Outside Handle Bracket Replacement
  4. Disconnect the electrical connector.

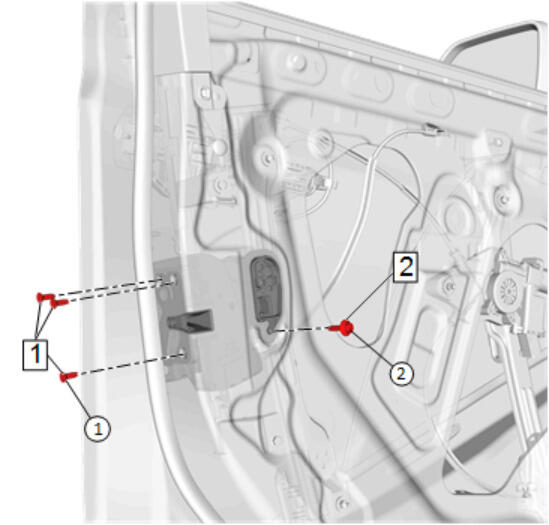

    5. Fig 4: Front Side Door Latch Bolts
    GM4296954Courtesy of GENERAL MOTORS COMPANY
  5. Remove Front Side Door Latch Bolt (1) (Qty: 4)
    6. Fig 5: Front Door Outside Handle Bracket And Front Side Door Latch
    GM3753753Courtesy of GENERAL MOTORS COMPANY
  6. Remove Front Door Outside Handle Bracket (1) @ Front Side Door Latch (2)
    7. Fig 6: Front Side Door Outside Handle Cable
    GM4206001Courtesy of GENERAL MOTORS COMPANY
  7. Remove Front Side Door Outside Handle Cable (1). Refer to Front Side Door Outside Handle Cable Replacement
    8. Fig 7: Front Side Door Inside Handle Cable
    GM4204878Courtesy of GENERAL MOTORS COMPANY
  8. Remove Front Side Door Inside Handle Cable (1). Refer to Front Side Door Inside Handle Cable Replacement
