Door Lock Switch Replacement - Driver Side

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

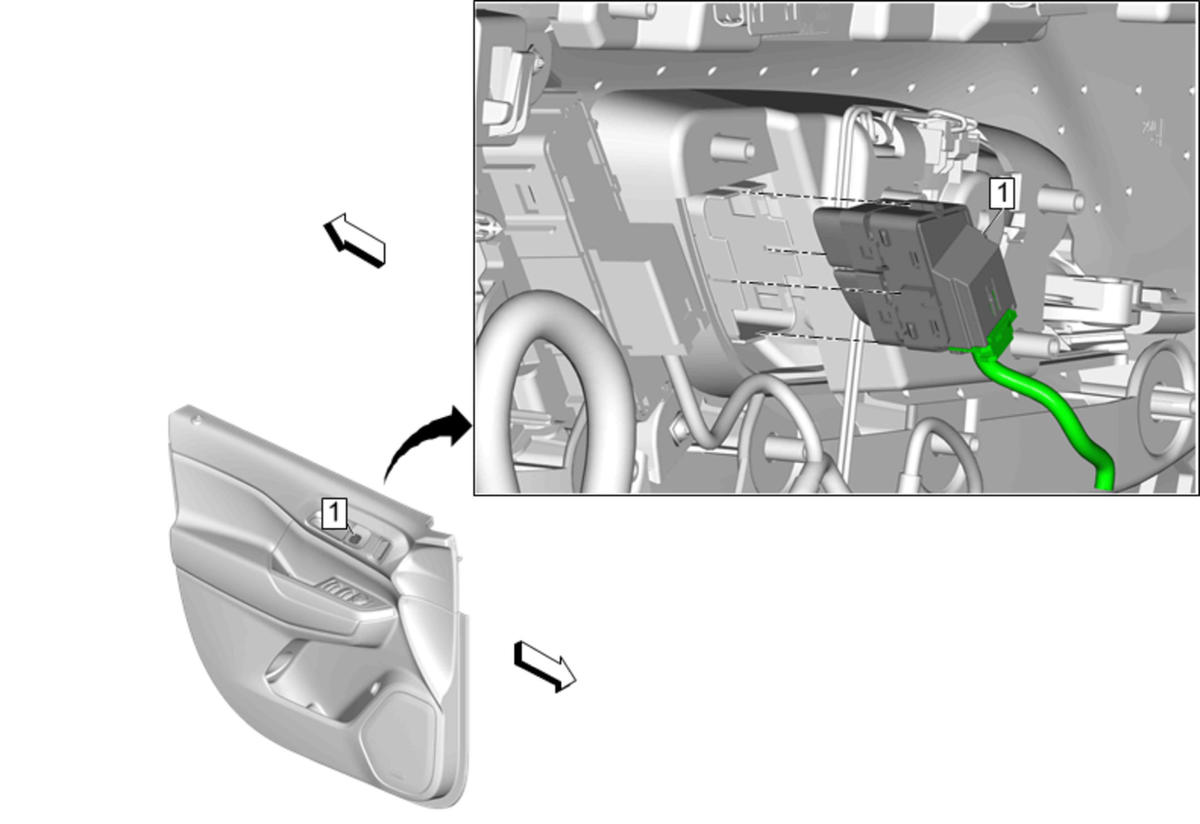

Fig 1: Door Lock Switch - Driver Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Front Side Door Trim. Refer to Front Side Door Trim Replacement Reposition insulator, as required.
1	Door Lock Switch - Driver Side Procedure From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Remove Front Side Door Trim. Refer to Front Side Door Trim Replacement
Reposition insulator, as required.

Door Lock Switch - Driver Side

Procedure

From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
Disconnect the electrical connector.
