Low Frequency Rear Compartment Antenna Replacement (Except All Terrain)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

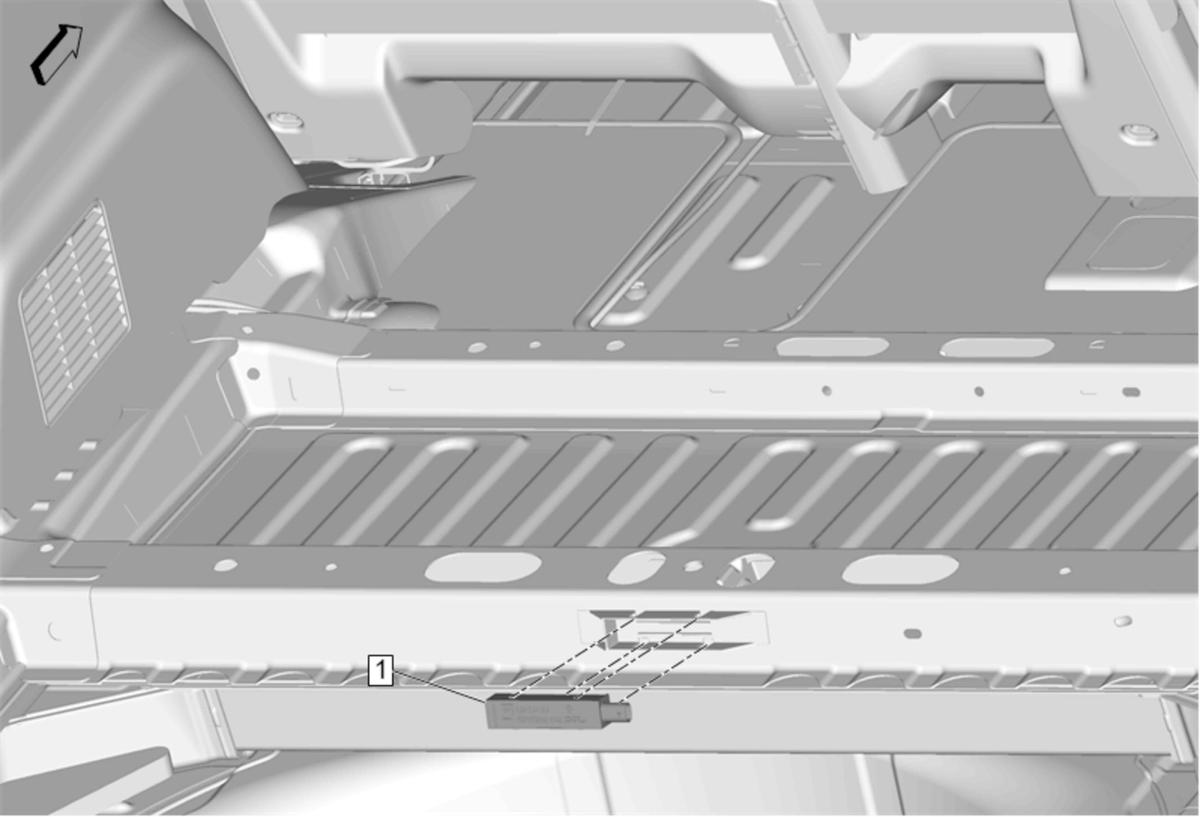

Fig 1: Low Frequency Rear Compartment Antenna (Except All Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove 3rd Row Seat. Refer to 3rd Row Seat Removal and Installation
1	Low Frequency Rear Compartment Antenna Procedure Reposition the carpet. Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove 3rd Row Seat. Refer to 3rd Row Seat Removal and Installation

Low Frequency Rear Compartment Antenna

Procedure

Reposition the carpet.
Disconnect the electrical connector.
Release the retaining tabs.
