Low Frequency Rear Compartment Antenna Replacement (All Terrain)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

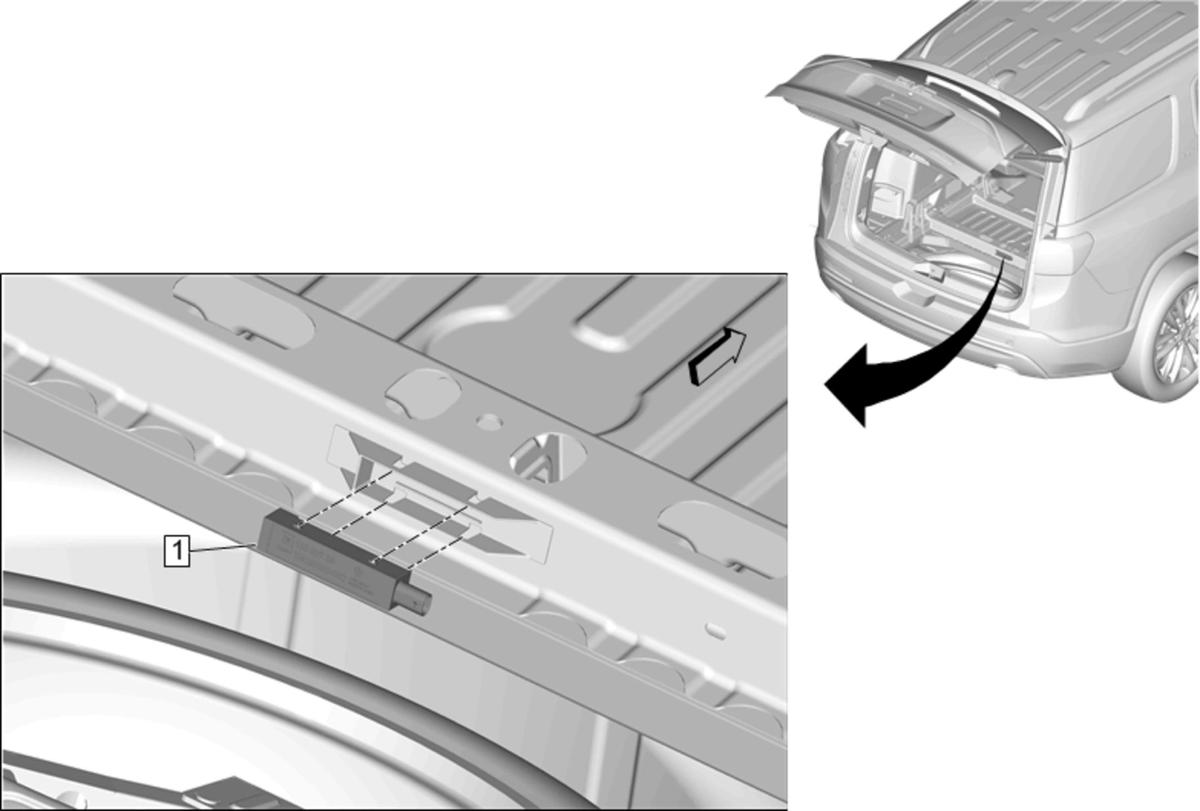

Fig 1: Low Frequency Rear Compartment Antenna (All Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Compartment Floor Stowage Compartment Divider - Right Side (All Terrain). Refer to Rear Compartment Floor Stowage Compartment Divider Replacement - Right Side (All Terrain)
1	Low Frequency Rear Compartment Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove Rear Compartment Floor Stowage Compartment Divider - Right Side (All Terrain). Refer to Rear Compartment Floor Stowage Compartment Divider Replacement - Right Side (All Terrain)

Low Frequency Rear Compartment Antenna

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
