Antenna Coaxial Cable Replacement - Instrument Panel

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

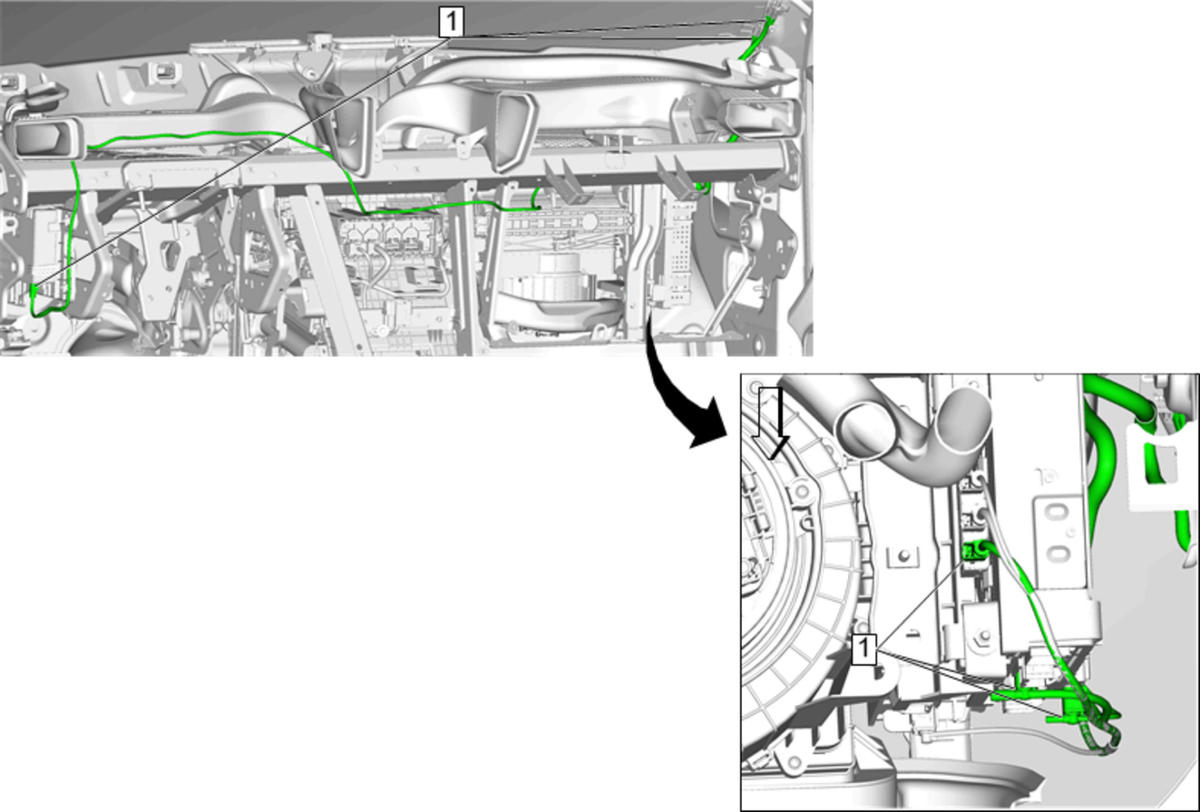

Fig 1: Antenna Coaxial Cable - Instrument Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Assembly. Refer to Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB)
1	Antenna Coaxial Cable - Instrument Panel Procedure Disconnect the electrical connectors. The cable connects to the communication interface module, navigational signal splitter, radio, and antenna coaxial cable - headlining. If the antenna cable is taped into the wiring harness, cut the ends off the old antenna and route the new antenna as close to the old one as possible using tie straps to secure the new cable.

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Assembly. Refer to Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB)

Antenna Coaxial Cable - Instrument Panel

Procedure

Disconnect the electrical connectors. The cable connects to the communication interface module, navigational signal splitter, radio, and antenna coaxial cable - headlining.
If the antenna cable is taped into the wiring harness, cut the ends off the old antenna and route the new antenna as close to the old one as possible using tie straps to secure the new cable.
